License Plate Lamp: Service and Repair

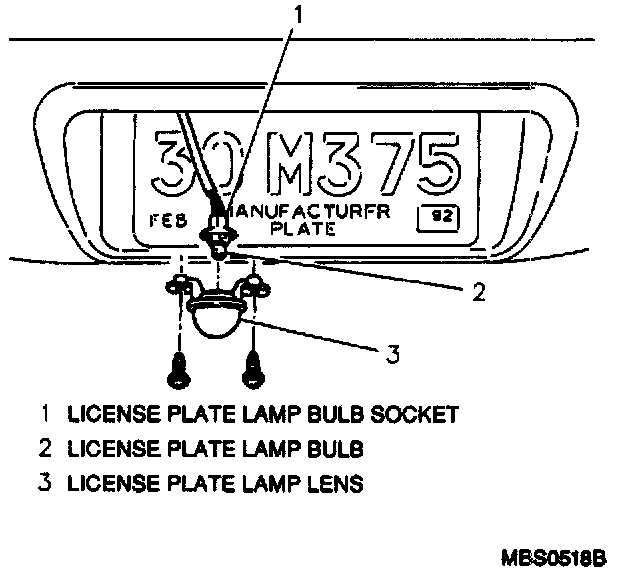

License Plate Lamp Assembly:

Remove or Disconnect
1. Negative (-) battery cable.
2. Two screws and license plate lamp assembly from rear bumper.
3. License plate lamp bulb socket from lamp assembly.
4. License plate lamp bulb from socket.

Install or Connect
1. License plate lamp bulb to socket.
2. License plate lamp bulb socket to lamp assembly.
3. License plate lamp assembly to rear bumper; secure with two screws
4. Negative (-) battery cable.
