Manual Transmission/Transaxle: Application and ID

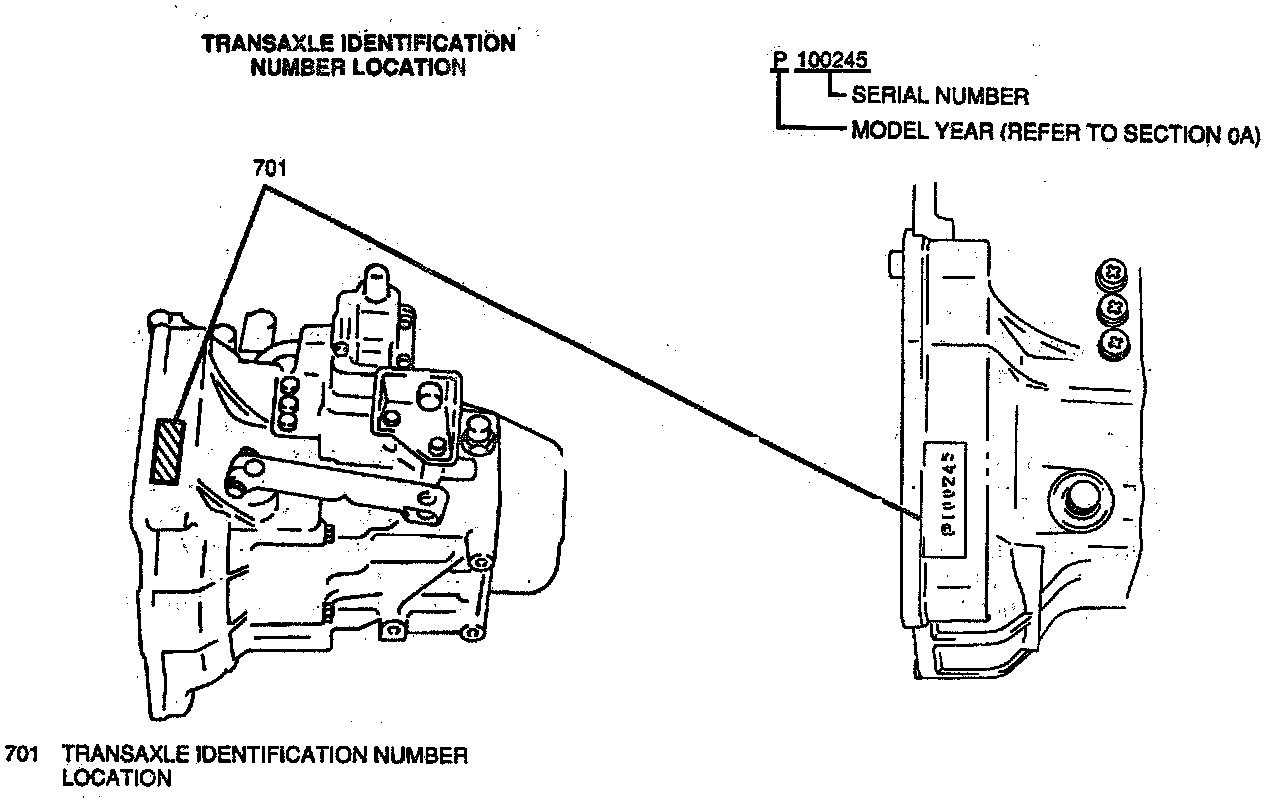

Manual Transmission Identification Number Location:

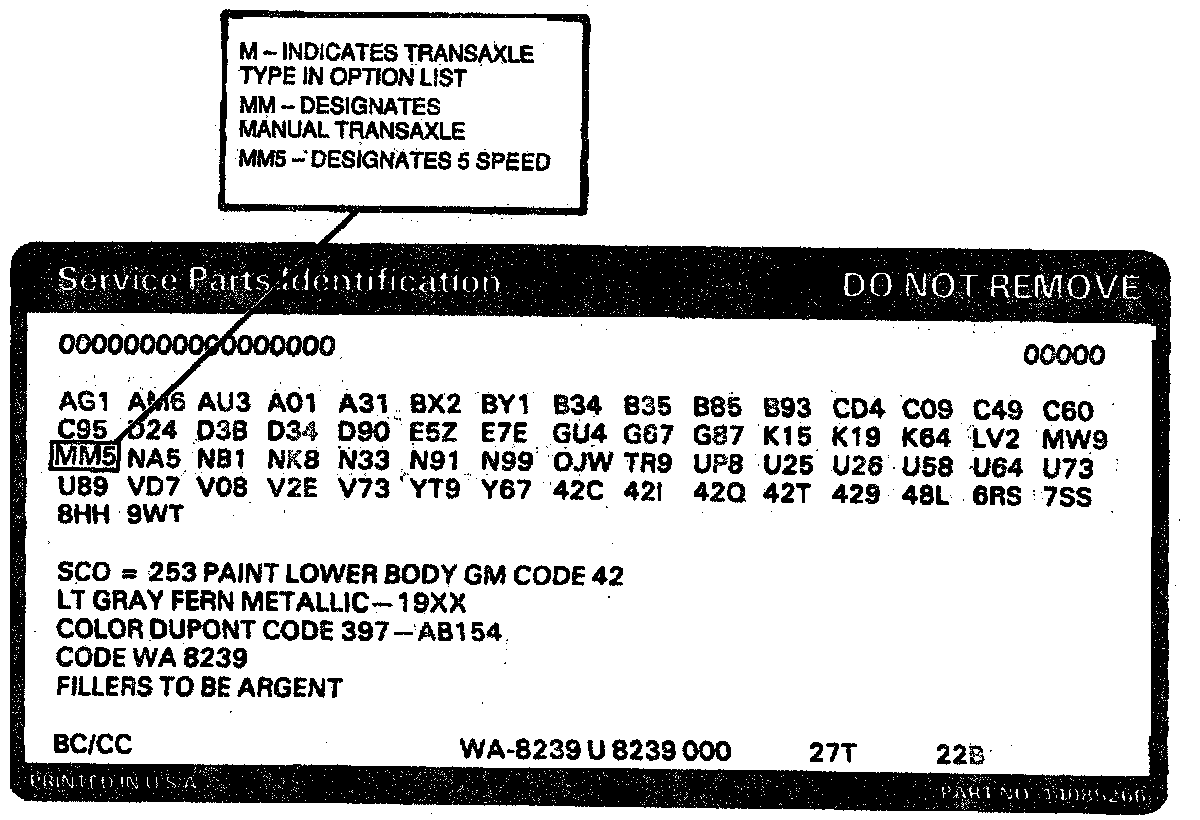

Service Parts Identification Label:

The manual transaxle identification number is located on the top of the right case. This seven digit number is stamped into the right case and refers to model year and serial number sequence. Additional transaxle identification can be found on the service parts identification label. This label contains information on regular production options (RPO) as well as standard and mandatory options. This label is affixed to the top of the spare tire cover of each vehicle at the assembly plant. For additional information on the service parts identification label.
