Access Cover: Service and Repair

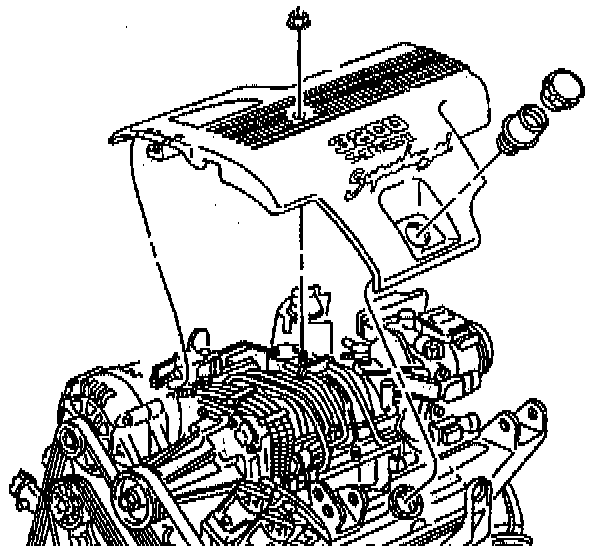

REMOVAL
1. Twist counter-clockwise to unlock the tube/oil fill cap from the valve rocker arm cover.
2. Remove the nut holding the fuel injector sight shield to the fuel injector rail brace stud. Refer to Engine Cover Replacement Service and Repair.
3. Lift the fuel injector sight shield up at the front and slide the tab out of the engine bracket.
4. Replace the tube/oil fill cap in the valve rocker arm cover.

INSTALLATION
1. Remove the tube/oil fill cap from the engine.
2. Insert the tab of the fuel injector sight shield under the engine bracket.
3. Place the hole of the fuel injector sight shield onto the oil fill neck of the valve rocker arm cover.
4. Install the tube/oil fill cap into the valve rocker arm cover and twist clockwise in order to lock.
5. Install the nut holding the fuel injector sight shield to the fuel injector rail brace stud. Tighten the nut to 2 Nm (18 inch lbs.).
