Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Antilock Brake System (ABS):
Antilock Brake System (ABS) W/Driver Information Display:

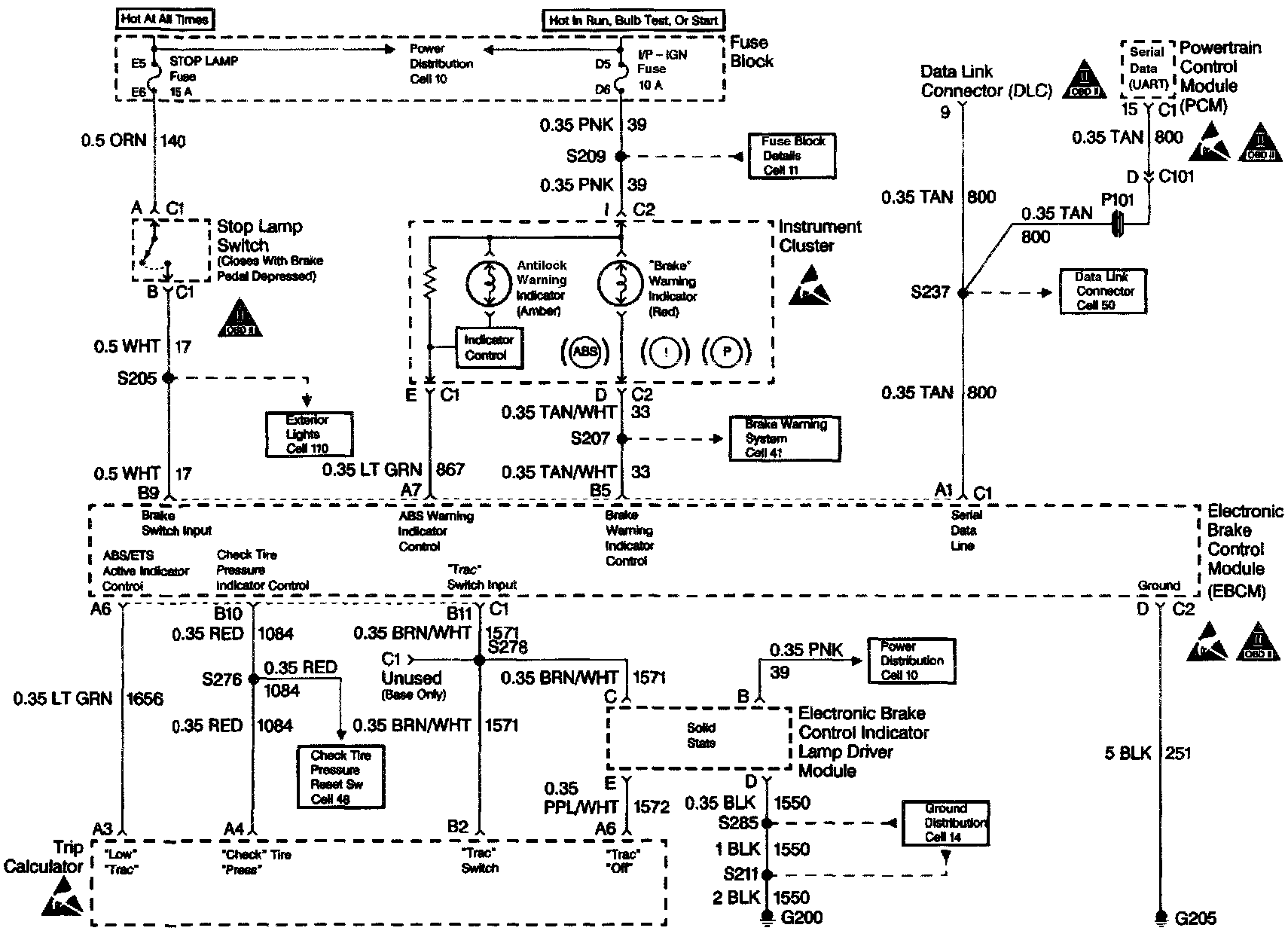

Antilock Brake System (ABS) W/Trip Calculator:
Antilock Brake System (ABS):
