Electronic Brake Control Module

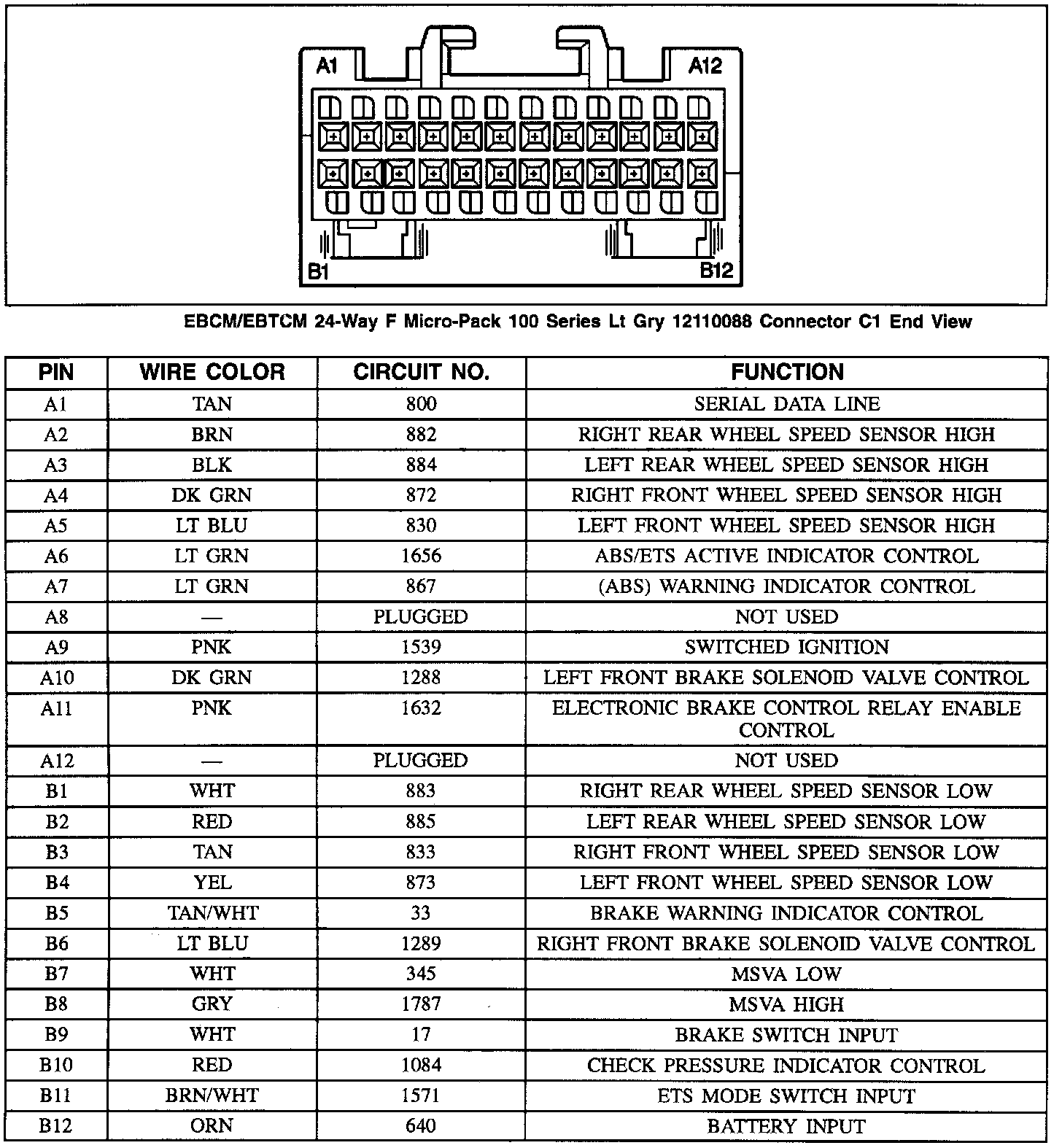

EBCM/EBTCM 24-Way F Micro-Pack 100 Series Lt Gry 12110066 Connector C1 End View:



EBCM/EBTCM 8-Way F Metri-Pack 280 Series Lt Gry 12110626 Connector C2 End View:
