Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1997
>>
Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Battery Lamp/Indicator
Battery Lamp/Indicator

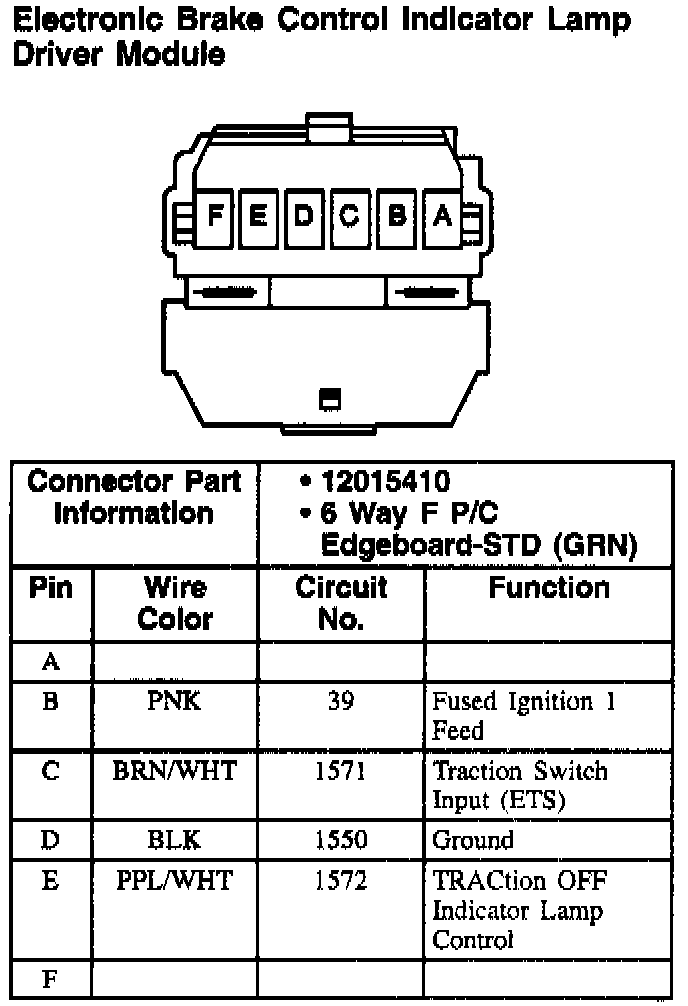

Electronic Brake Control Indicator Lamp Driver Module:
