Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Torque Converter Clutch, A/T

Torque Converter Clutch, A/T

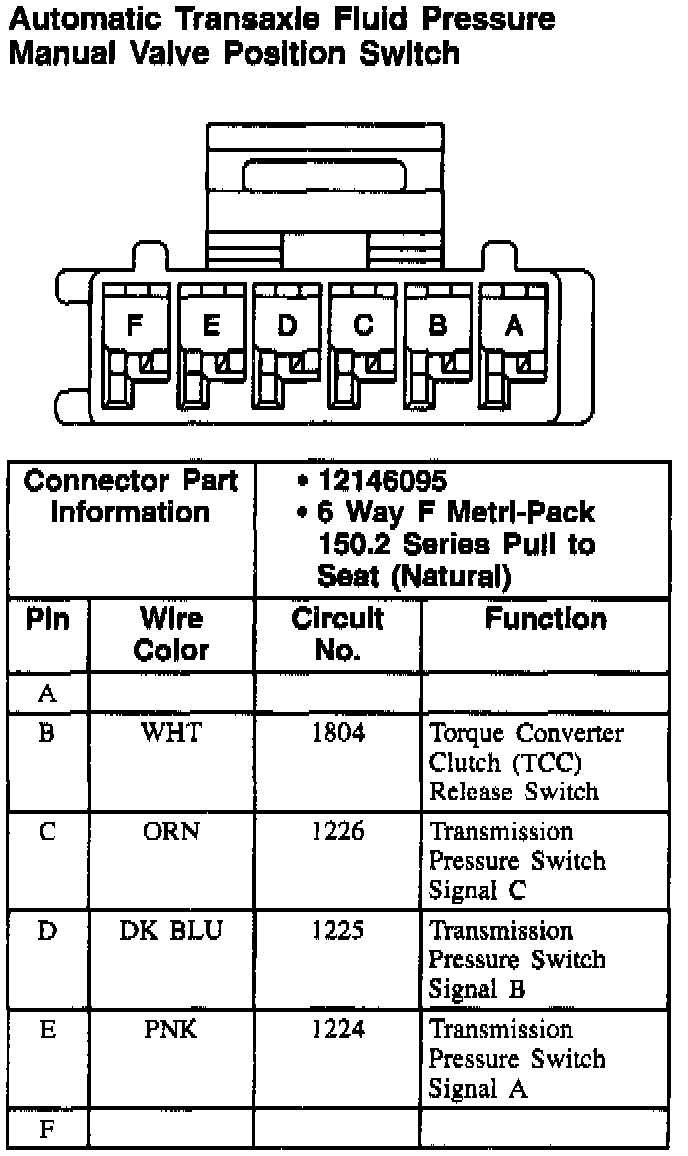

Automatic Transaxle Fluid Pressure Manual Valve Position Switch:
