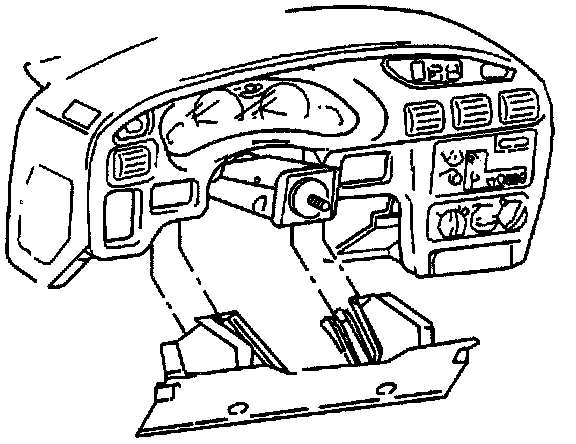

Knee Bolster Bracket Replacement

Description:

Remove or Disconnect
1. Left instrument panel insulator.
2. Steering column opening filler.
3. Alarm shock sensor connection, if equipped.
4. Bolts/screws from knee bolster bracket at instrument panel.
5. Bolts/screws from knee bolster bracket at steering column support.
6. Knee bolster bracket from instrument panel.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Knee bolster bracket to instrument panel.
2. Bolts/screws to knee bolster bracket at steering column support.

Tighten
^ Bolts/screws to 10 Nm (89 lb.in.).

3. Bolts/screws to knee bolster bracket at instrument panel.

Tighten
^ Bolts/screws to 2 Nm (18 lb.in.).

4. Alarm shock sensor connection, if equipped.
5. Steering column opening filler.
6. Left instrument panel insulator.
