Pontiac
>>
1997
>>
Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
C2
C2

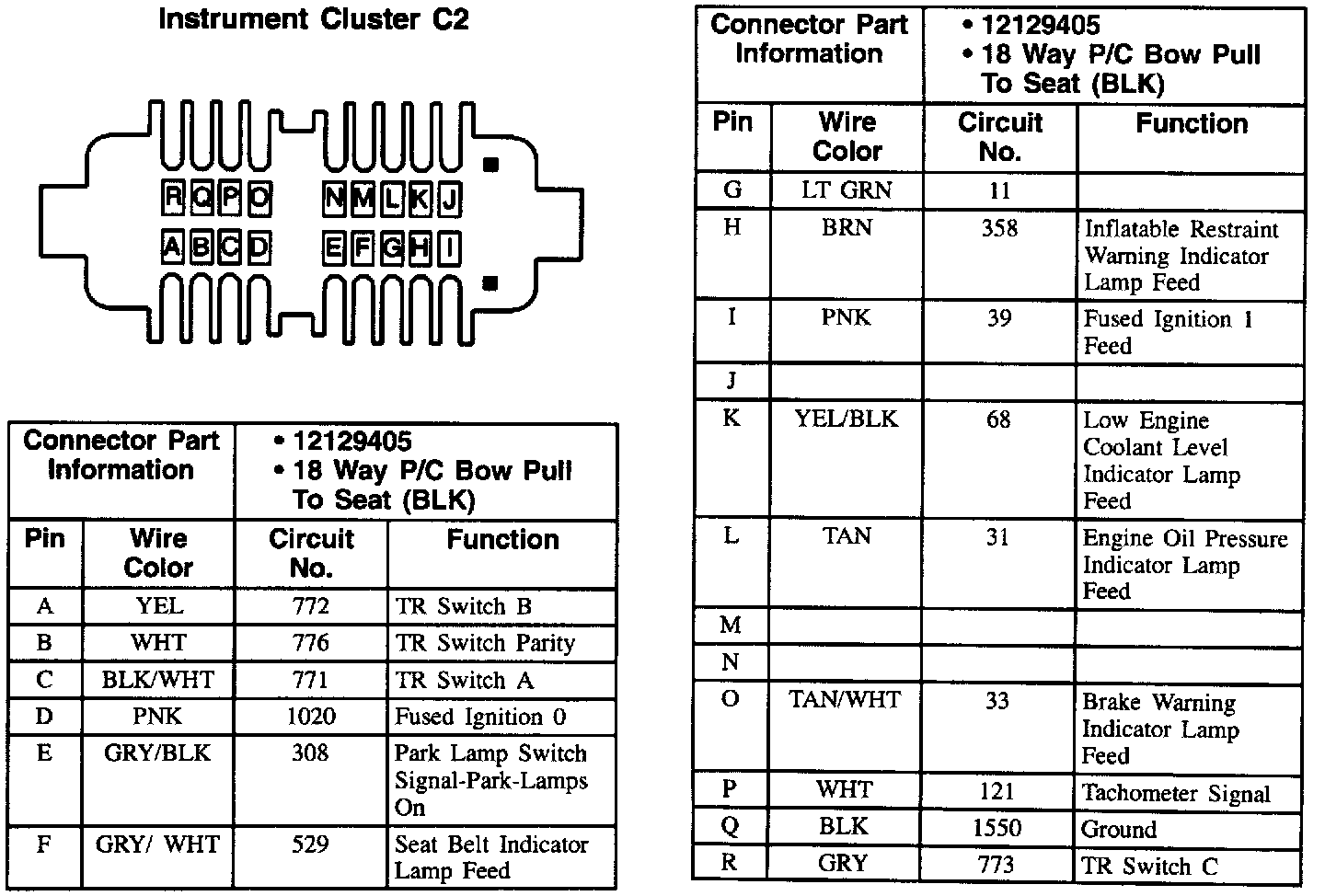

Instrument Cluster Connector: C2:
