Driver/Vehicle Information Display: Service and Repair

Description:

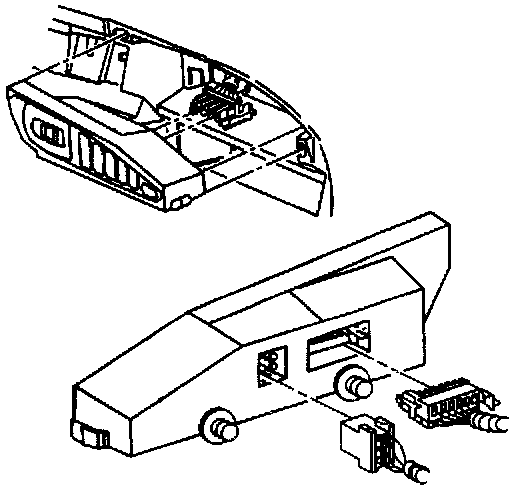

Remove or Disconnect
1. Instrument panel Insulators.
2. Instrument panel cluster trim.
3. DIC by unsnapping from Instrument panel.
4. Electrical connection.

Install or Connect
1. Electrical connection.
2. DIC by snapping to Instrument panel.
3. Instrument panel cluster trim.
4. Instrument panel Insulators.
