Instrument Panel Cluster Compartment-Without Hud Replacement

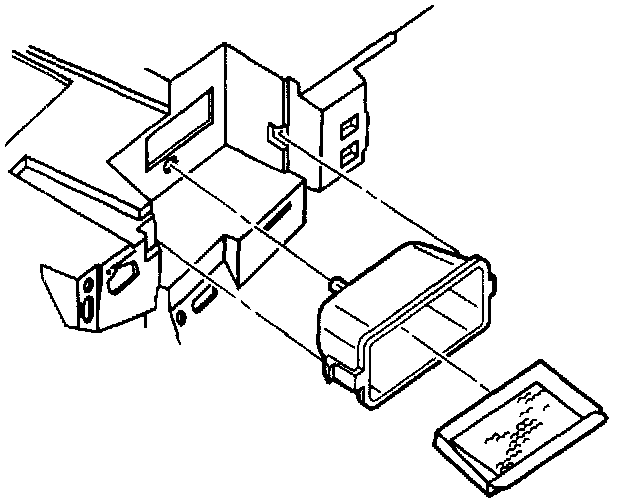

Instrument Panel Cluster Compartment:

Remove or Disconnect
1. Instrument panel cluster trim plate.
2. Instrument panel cluster compartment by unsnapping from instrument panel.
3. Instrument panel cluster compartment from instrument panel.

Install or Connect
1. Instrument panel cluster compartment to instrument panel.
2. Align instrument panel cluster compartment to instrument panel and snap into place.
3. Instrument panel cluster trim plate.
