Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

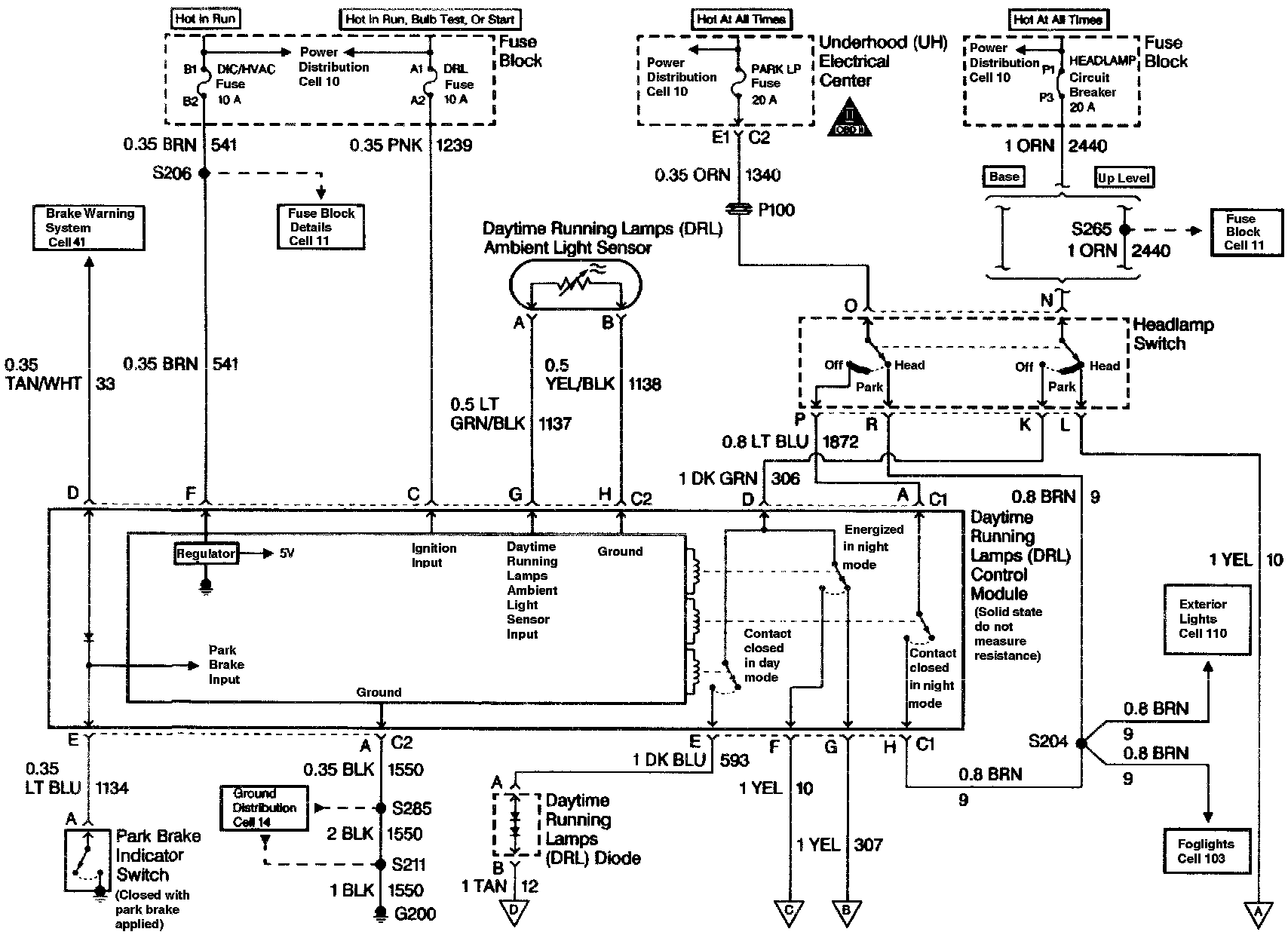

Daytime Running Lights (DRL) (Part 1 Of 2):



Daytime Running Lights (DRL) (Part 2 Of 2):
