Removal and Replacement

Description:

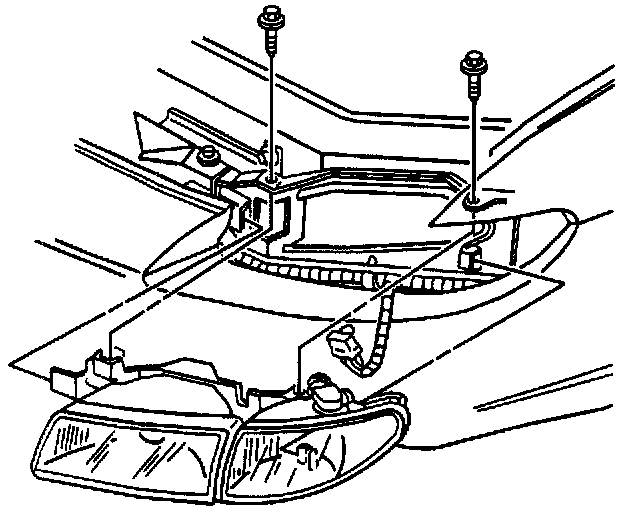

Remove or Disconnect
1. Open and support hood.
2. Bolts/screws from headlamp.
3. Slide headlamp out of slots in mounting bracket.
4. Electrical connector from headlamp.
5. Headlamp.

Install or Connect

NOTICE: Refer to "Service Precautions.

1. Electrical connector to headlamp.
2. Headlamp to body by sliding headlamp into slots in mounting bracket.
3. Bolts/screws to headlamp.

Tighten
^ Bolts/screws to 6 N.m (53 lb. in.).

4. Aim headlamps.
5. Close hood.
