Tail Lamp: Service and Repair

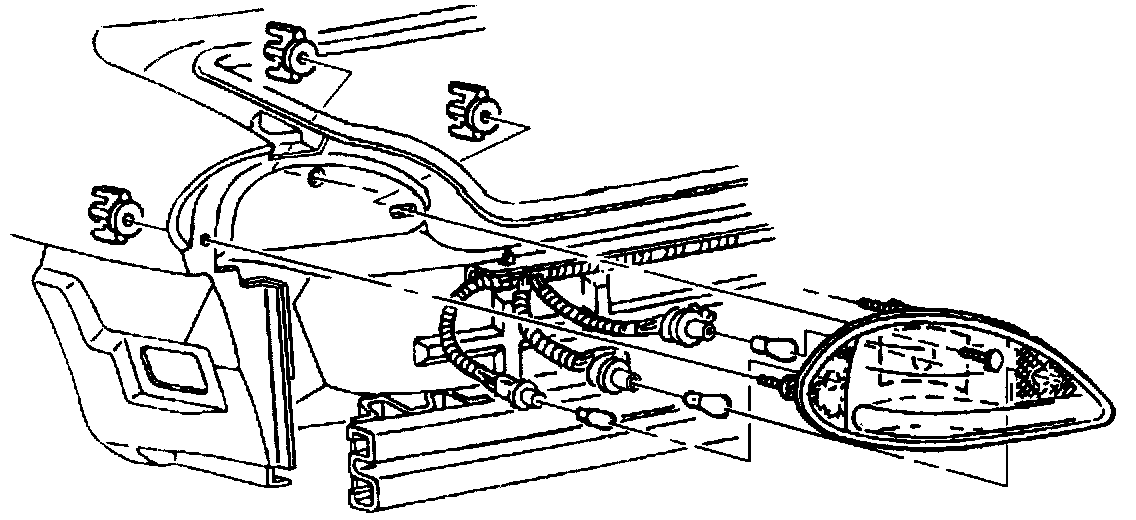

Description:

Remove or Disconnect
1. Open rear compartment.
2. Rear compartment convenience net, if equipped.
3. Rear compartment trim panel.
4. Wing nuts from taillamp mounting studs.
5. Taillamp sockets from taillamp.
6. Taillamp from rear body.

Install or Connect
1. Taillamp sockets to taillamp.
2. Taillamp to rear body.
3. Wing nuts to taillamp mounting studs and hand tighten.
4. Rear compartment trim panel.
5. Rear compartment convenience net, if equipped.
6. Close rear compartment.
