Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> TCC, Elek Ign and A/C CLU Fuses

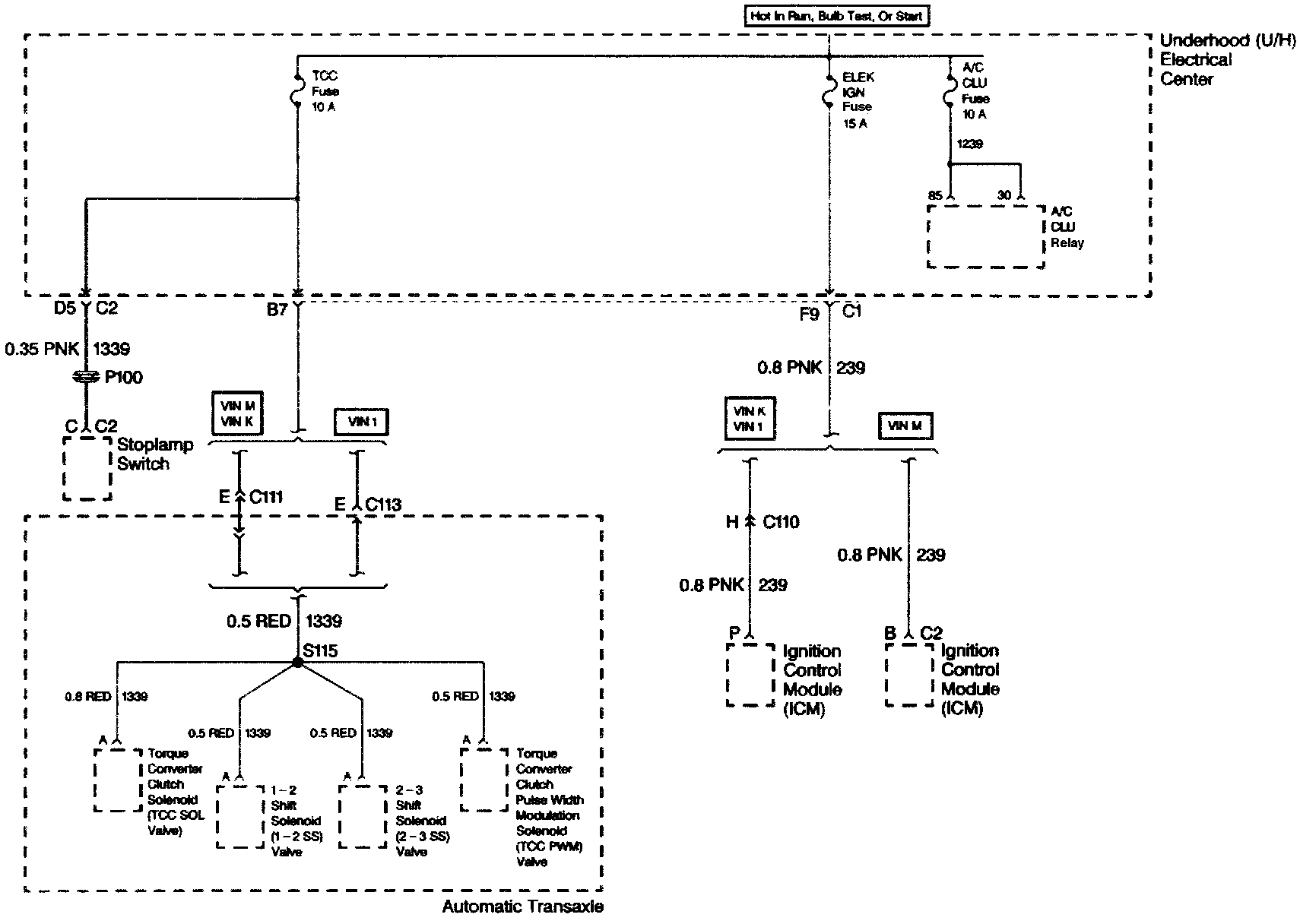

TCC, Elek Ign and A/C CLU Fuses

TCC, ELEK IGN And A/C CLU Fuses:
