Fuse: Application and ID

I/P Fuse Block:

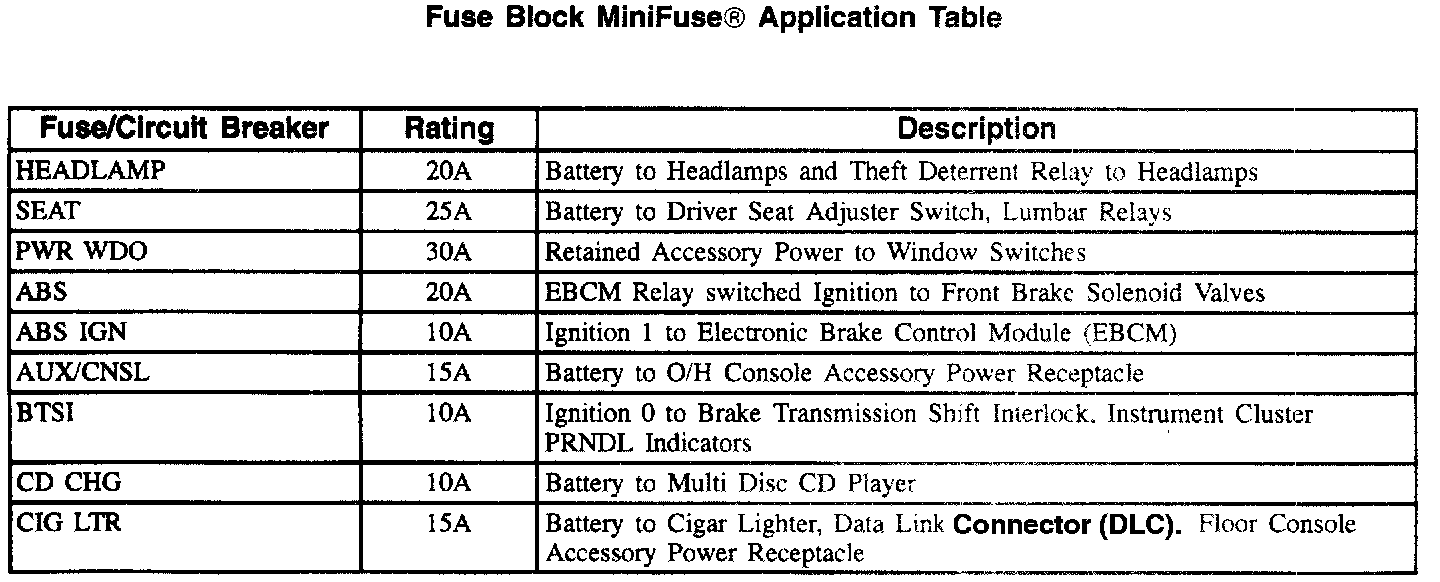

Fuse Block Mini Fuse Application Table (Part 1 Of 2):



Fuse Block Mini Fuse Application Table (Part 2 Of 2):
