Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views

Connector Views

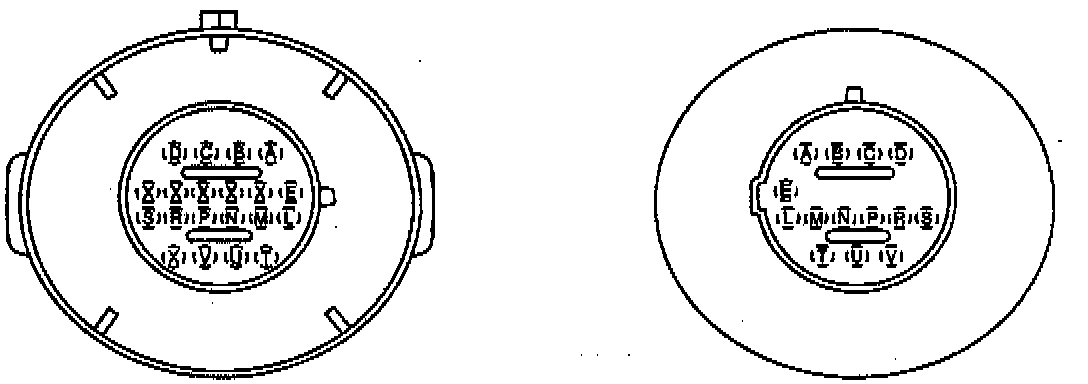

Part 1 Of 2:

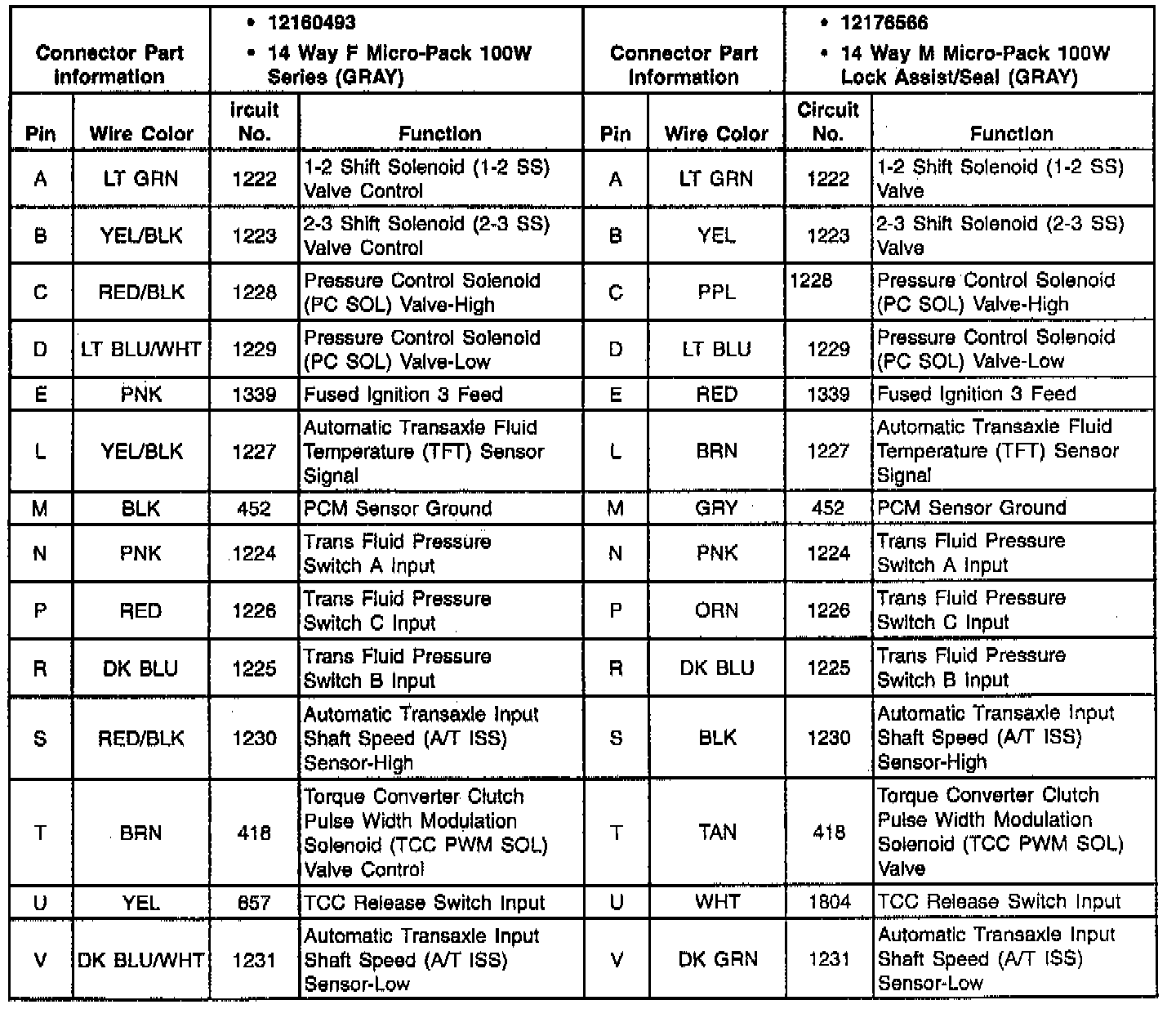

Part 2 Of 2:
