Shift Linkage: Service and Repair

REMOVE OR DISCONNECT

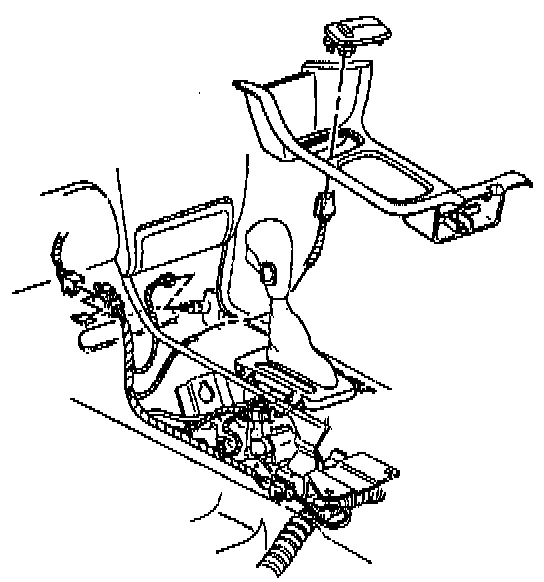

1. Console.
2. Console wiring harness.

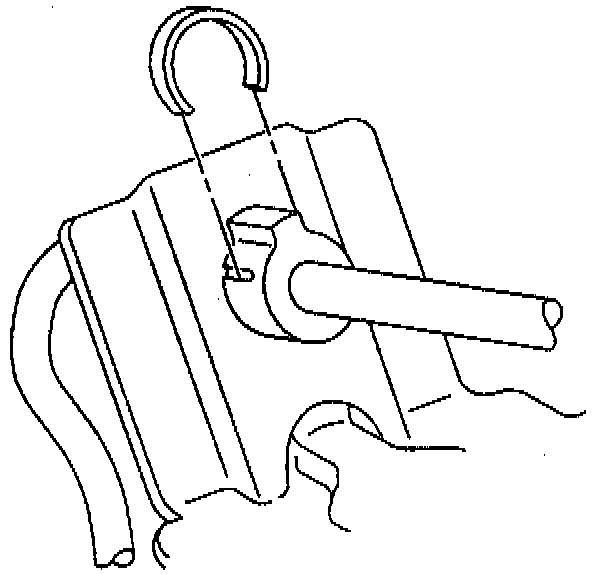

3. Automatic transaxle range selector lever cable.
4. Console shift control nuts.
5. Console shift control.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

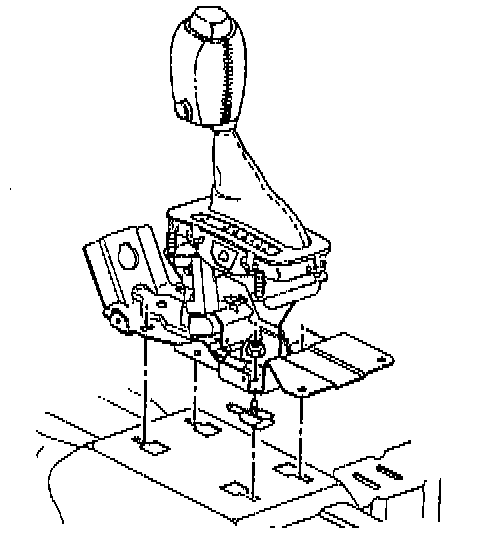

1. Console shift control.





Important: Install shift control in "Neutral." If console shift control is inadvertently moved to "Park," before console is installed, use lever on passenger side of shifter to depress and move out of "Park." If console is installed, and console shift control is inadvertently moved to "Park," remove the shift lever release cover to access the lever.

2. Console shift control nuts.
- Tighten nuts to 24 Nm (18 lb ft).
3. Automatic transaxle range selector lever cable.
4. Console wiring harness.

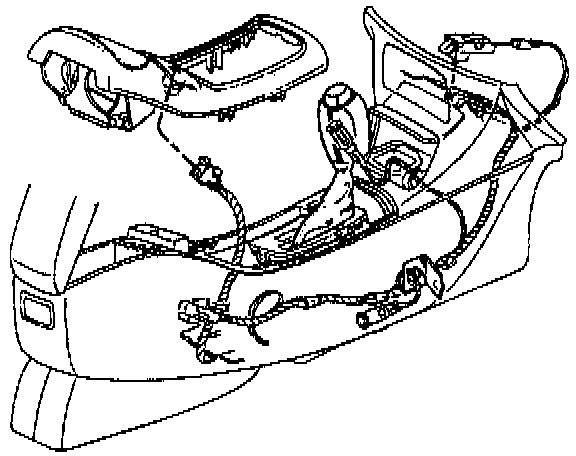

5. Console.

Adjust
- Transaxle side automatic transaxle range selector lever cable.
