Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Locks >> System Diagram >> Front >> Ajar Indicator Switch >> LH

LH

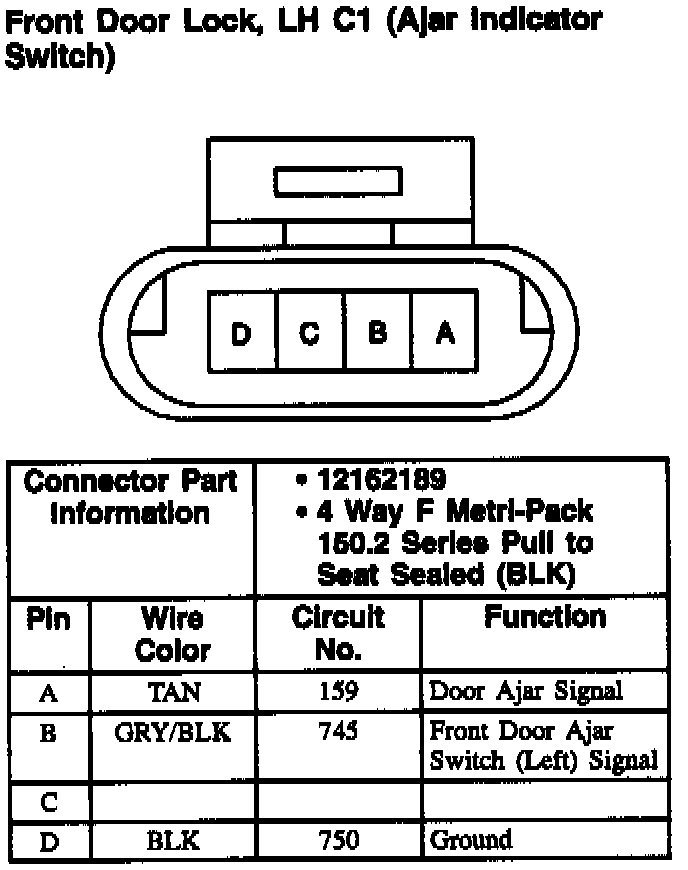

Front Door Lock, LH: C1 (Ajar Indicator Switch):
