Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Motor

Power Seat Motor

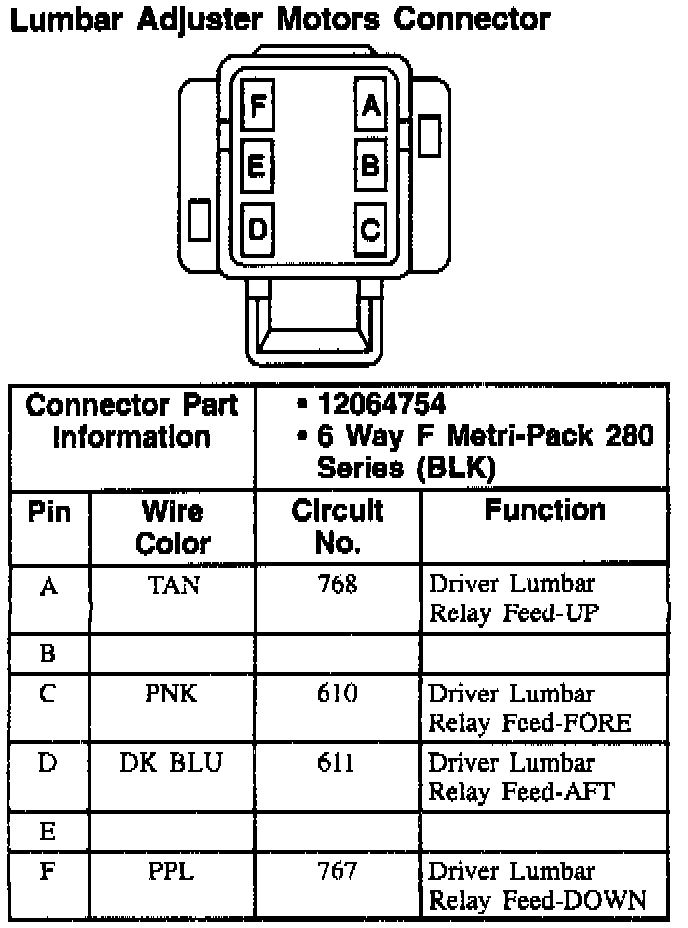

Lumbar Adjuster Motors Connector:
