Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram

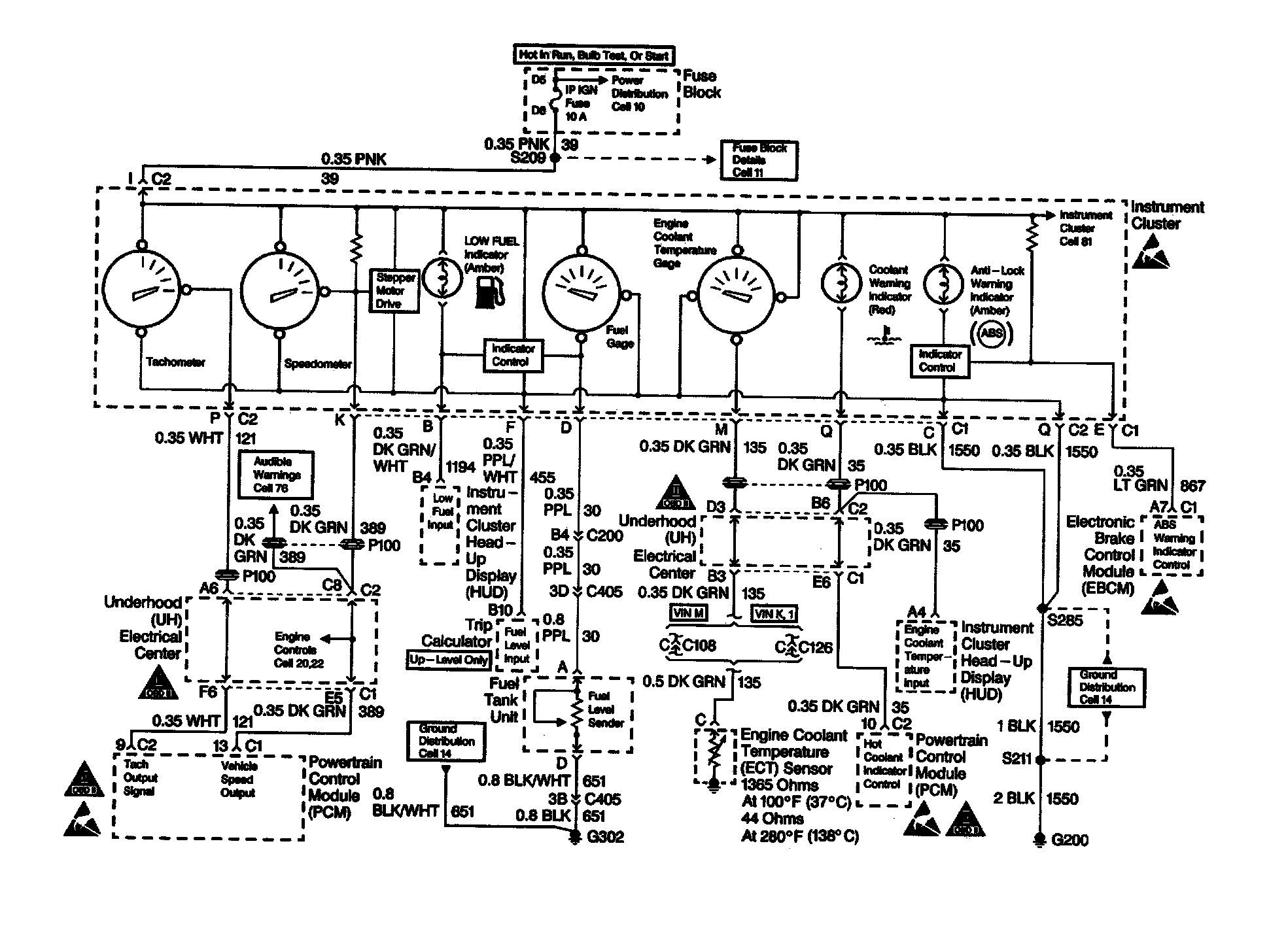

System Diagram

Instrument Cluster (Part 1 Of 3):
