Knock Sensor
>>
Locations
>>
Component Locations
>>
Detonation Sensor
Detonation Sensor

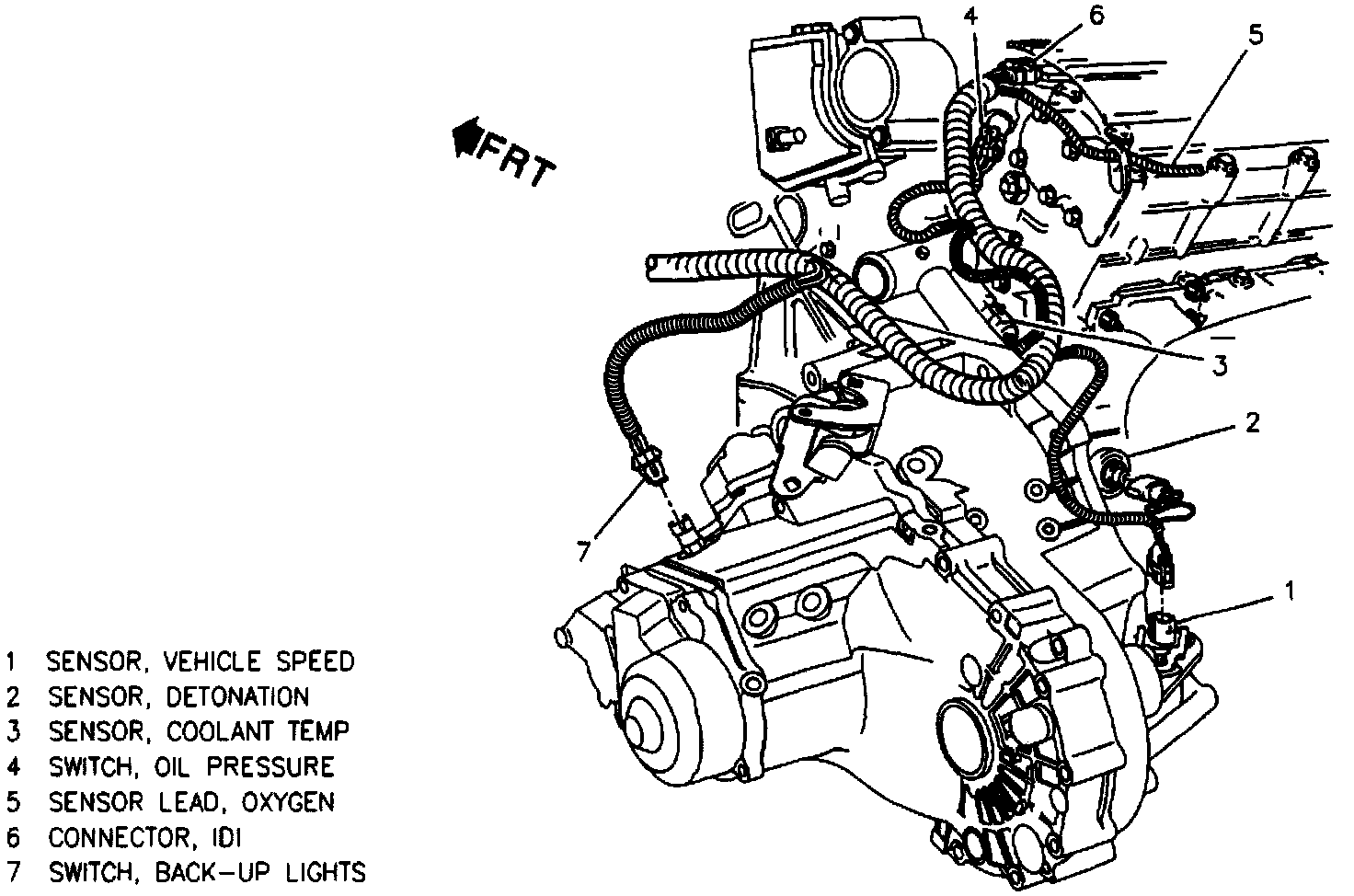

KNOCK SENSOR KS (DETONATION SENSOR)
LH Rear Of Transaxle:
The Knock Sensor (KS) is located on the rear center of engine.
