Radio/Stereo: Service and Repair

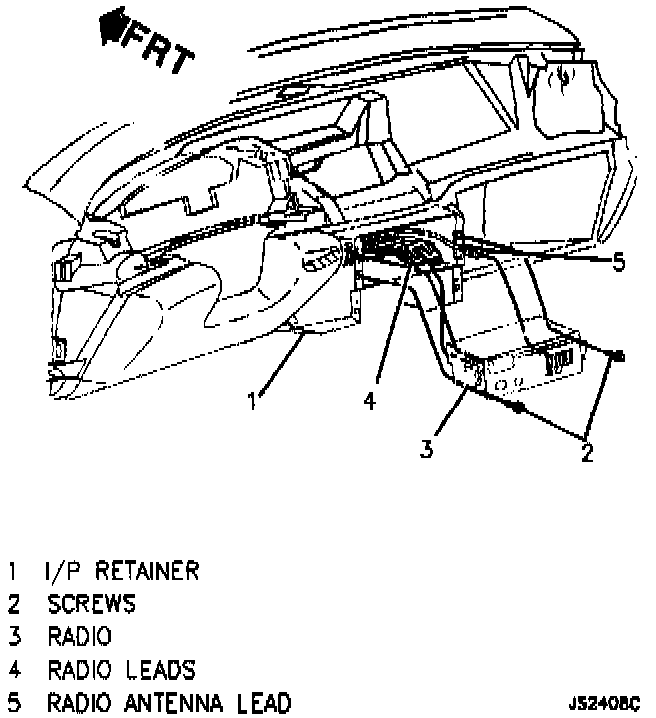

Remove or Disconnect
1. Disable SIR system.
2. Negative battery cable.
3. Accessory trim plate.
4. Screws and pull rearward.
5. Electrical and antenna lead connections.

Install or Connect
1. Electrical and antenna lead connections.
2. Screws to I/P.
3. Accessory trim plate.
4. Negative battery cable.
5. Enable SIR system.
