Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Lights ON/Ignition/Fasten Belts
Lights ON/Ignition/Fasten Belts

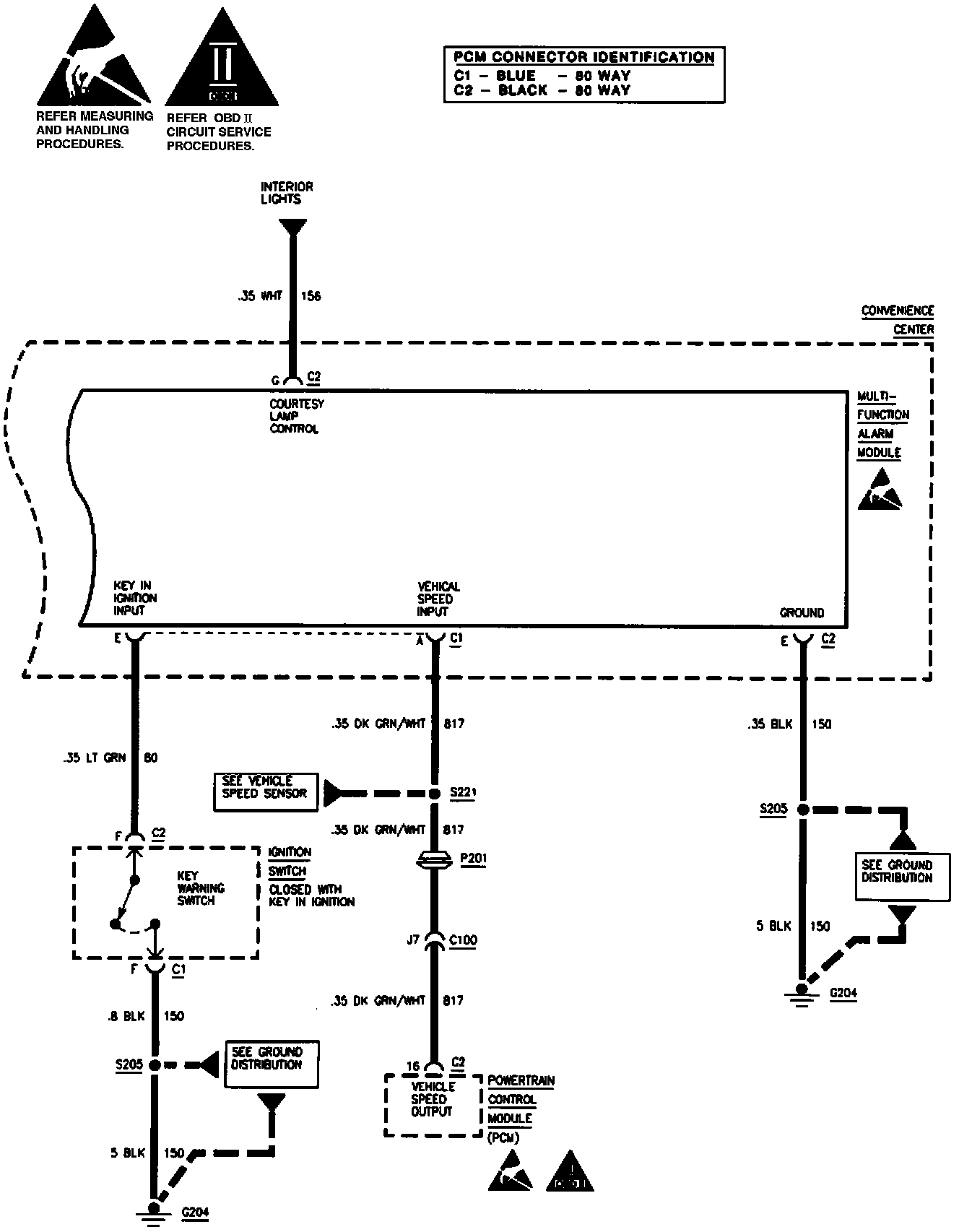

Lights-ON Ignition/Fasten Belts (Part 1 Of 3):

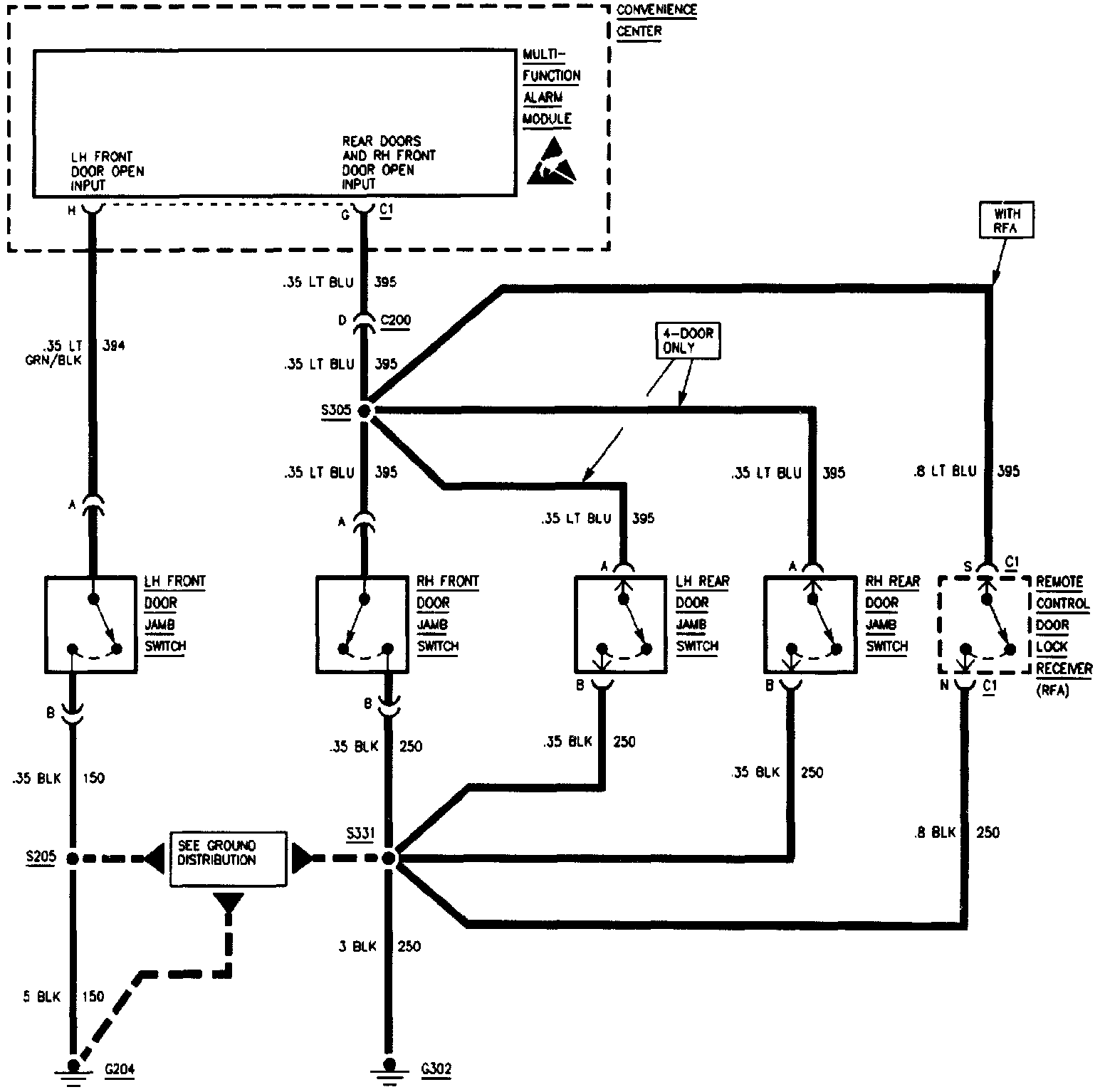

Lights-ON Ignition/Fasten Belts (Part 2 Of 3):

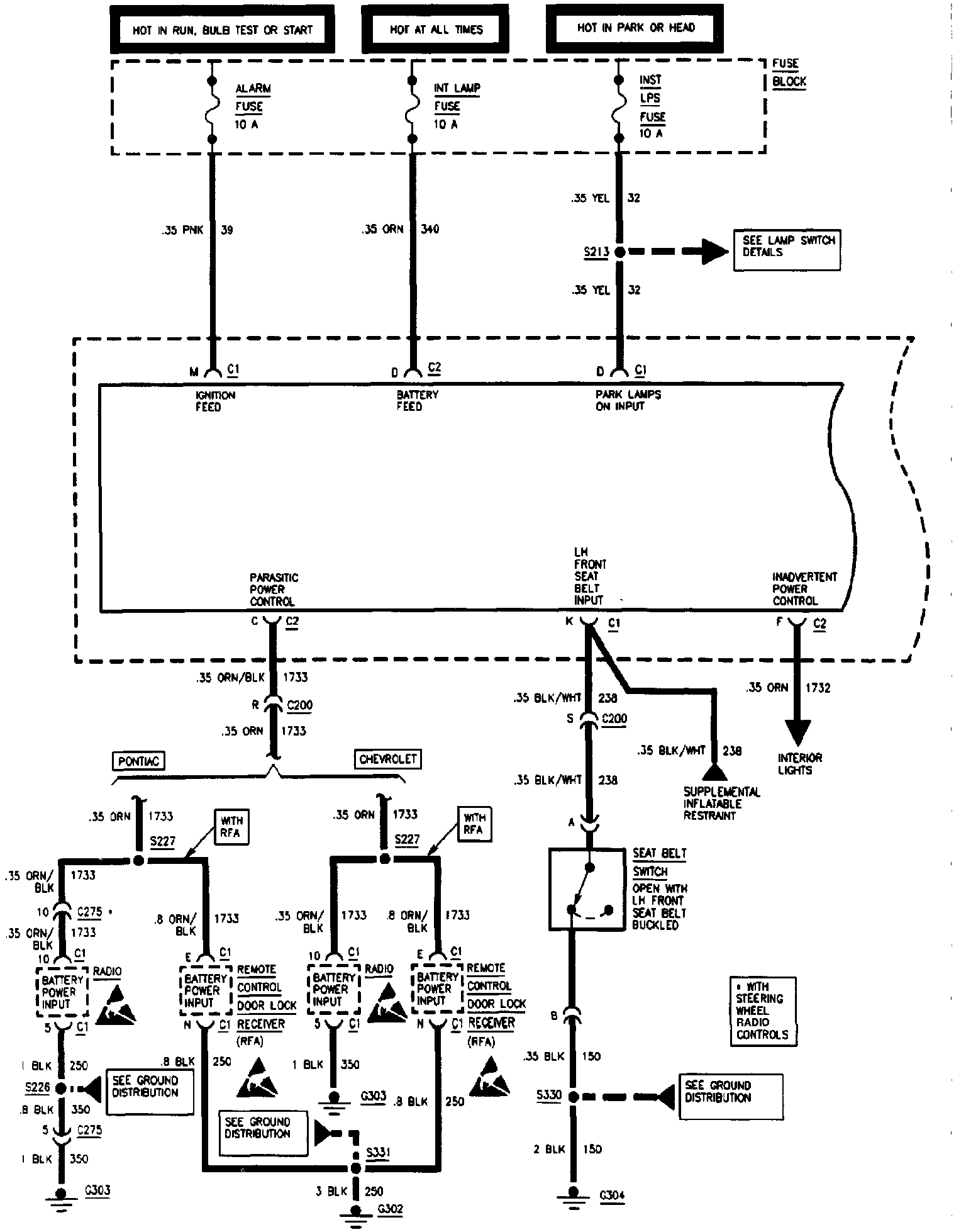

Lights-ON Ignition/Fasten Belts (Part 3 Of 3):
