Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1998
>>
Bonneville V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Fuel Pressure Control Module
Fuel Pressure Control Module

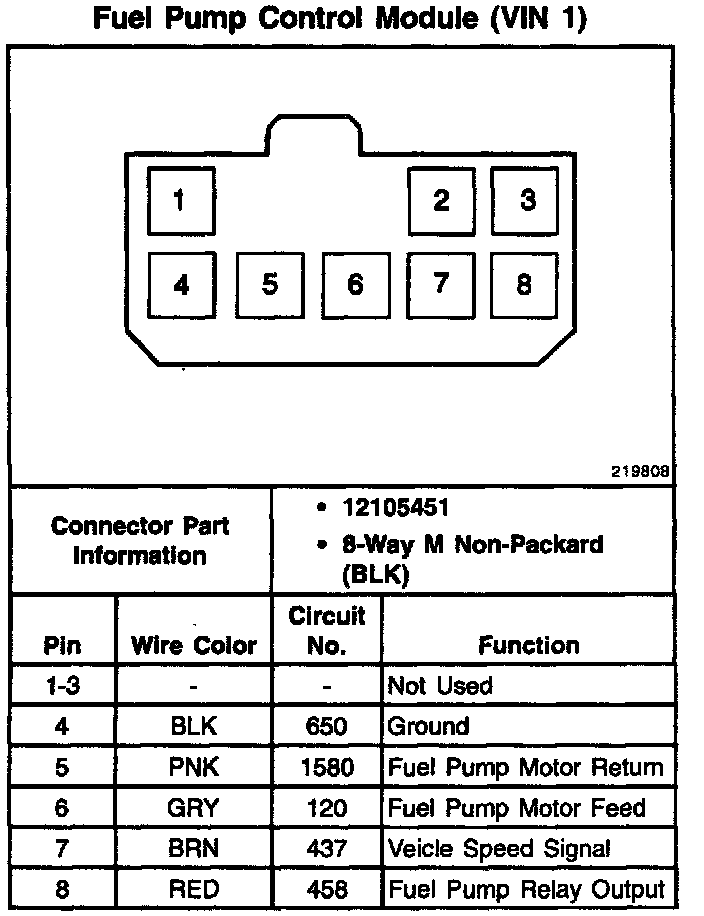

Fuel Pump Control Module (VIN 1):
