Lamp Out Indicator

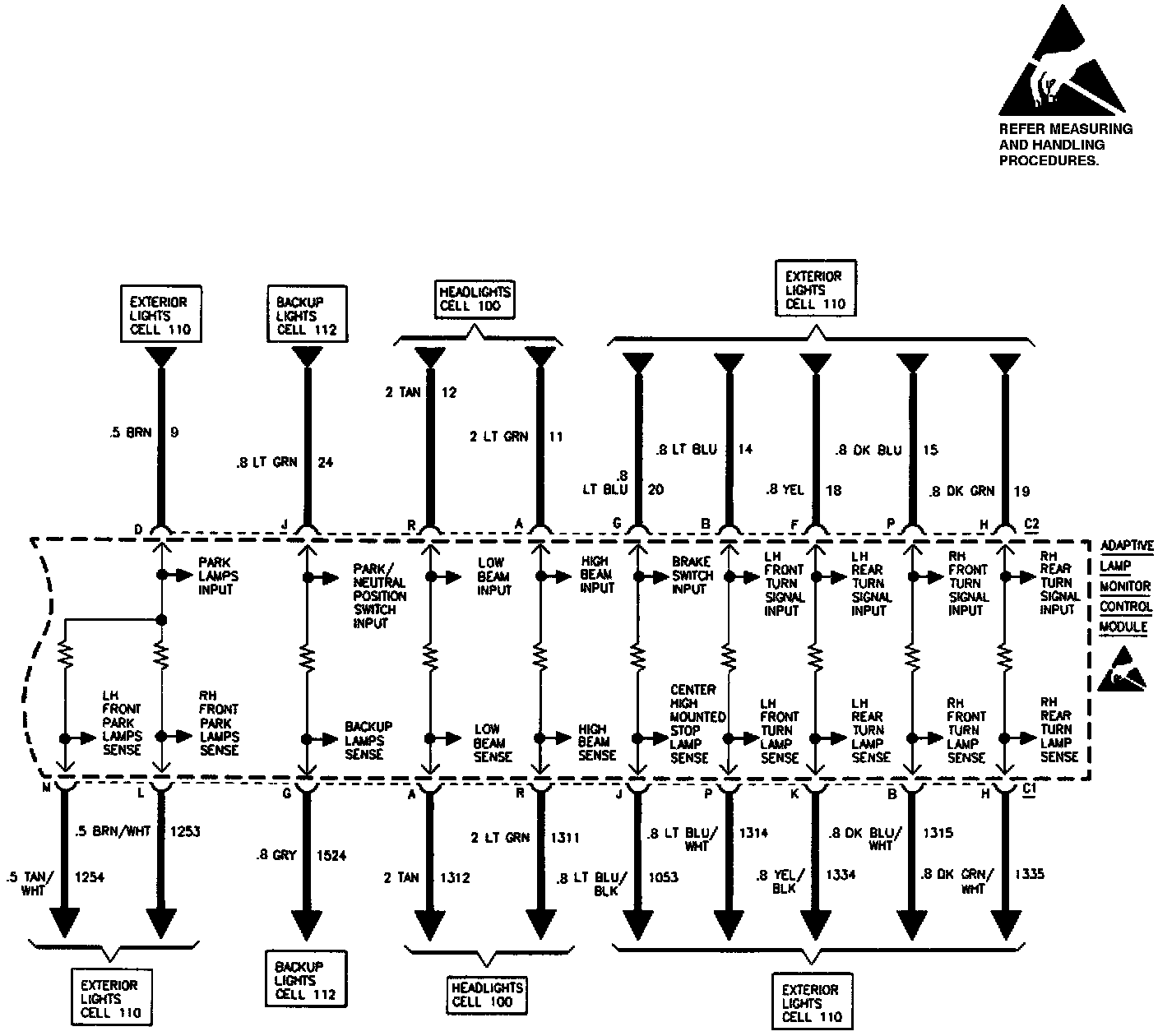

Lamp Monitor: With U2F/U50 (Part 1 Of 2):



Lamp Monitor: With U2F/U50 (Part 2 Of 2):
