Driver Information Center W/U50/U2F

Driver Information Center:

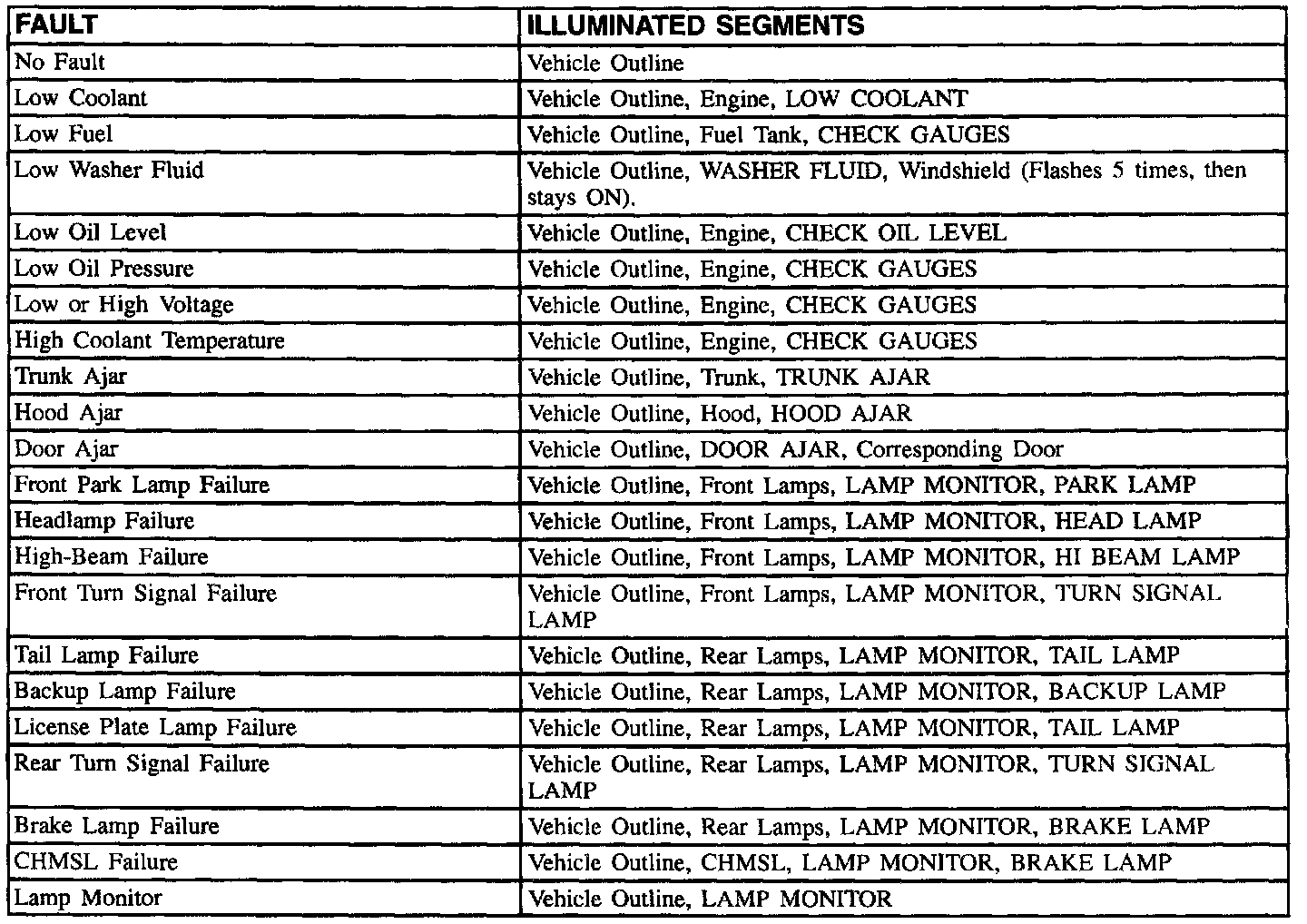

The Driver Information Center (DIC) is a two color Vacuum Fluorescent (VF) display that contains the odometers, warning indicators, lamp monitor displays, and a graphic representation of the vehicle.
