Chart 3 All Courtesy Lamps Inoperative Only With Interior Lamp
Chart 3 All Courtesy Lamps Inoperative Only With Interior Lamp

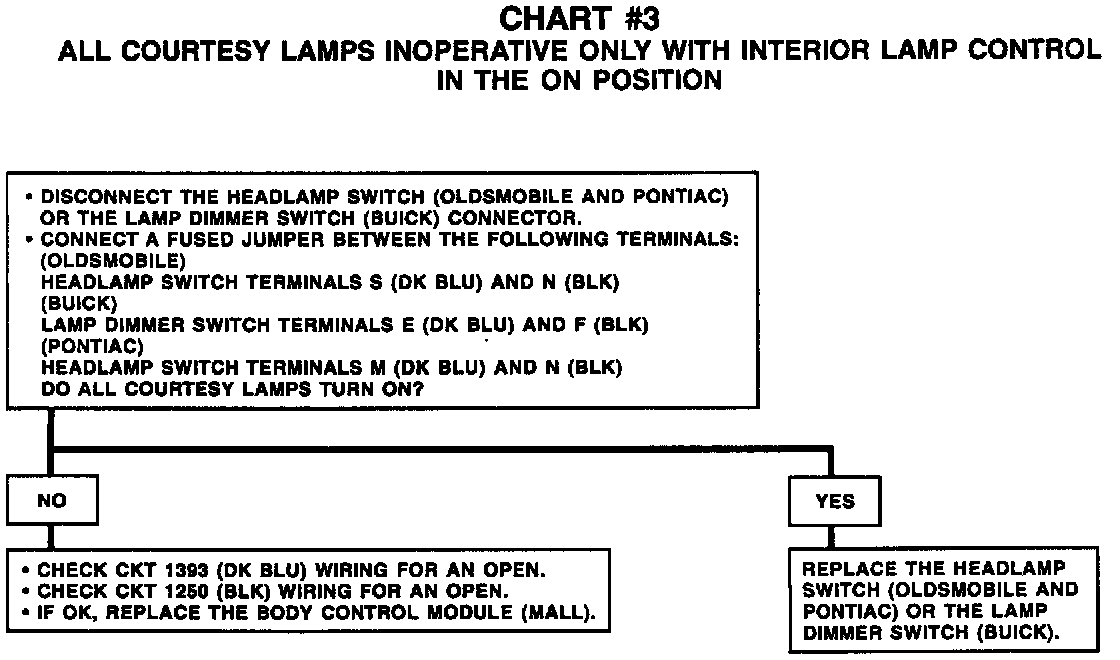

Chart #3 All Courtesy Lamps Inoperative Only With Interior Lamp Control In The ON Position:
