Park Brake Actuator Replacement

REMOVAL PROCEDURE
1. Remove the rear brake rotor. Refer to Brake Rotor Replacement (Rear)
2. Rotate the parking brake adjuster nut until the bolt is in the closed position.





3. Remove the parking brake shoe retaining spring.





4. Remove the parking brake shoe.





5. Remove the two actuator mounting bolts.
6. Remove the actuator assembly from the brake backing plate.

INSTALLATION PROCEDURE

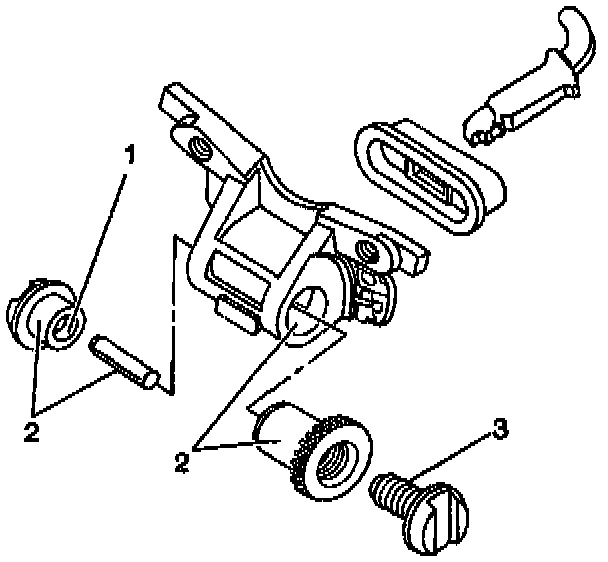

1. Apply grease to positions 1 and 2. Do not apply grease to position 3.





2. Install the actuator to the brake backing plate.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

3. Install the actuator mounting bolts.

Tighten the actuator mounting bolts to 70 Nm (52 ft. lbs.).

4. Install the parking brake shoe.





5. Install the parking brake shoe retaining spring.
6. Adjust the parking brake. Refer to Park Brake Shoe Adjustment
7. Install the brake rotor. Refer to Brake Rotor Replacement (Rear).
