Daytime Running Lamp Control Unit

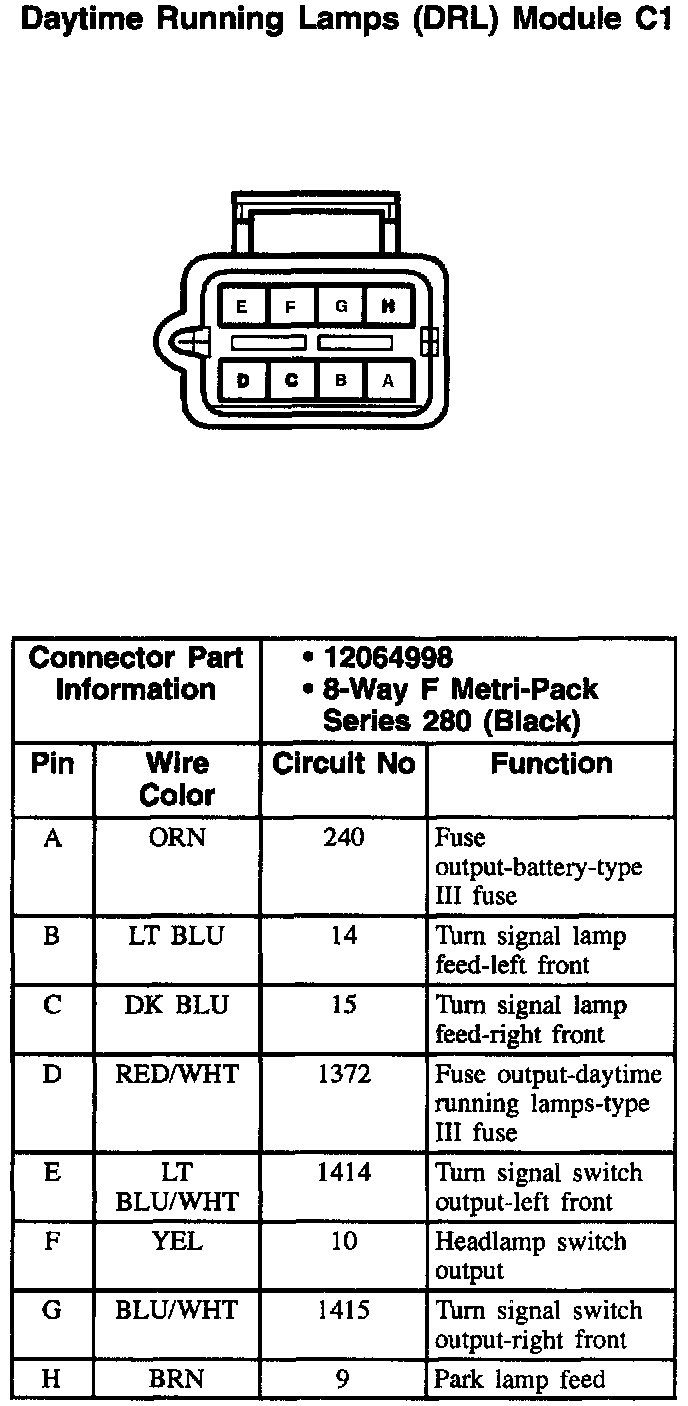

Daytime Running Lamps (DRL) Module C1:

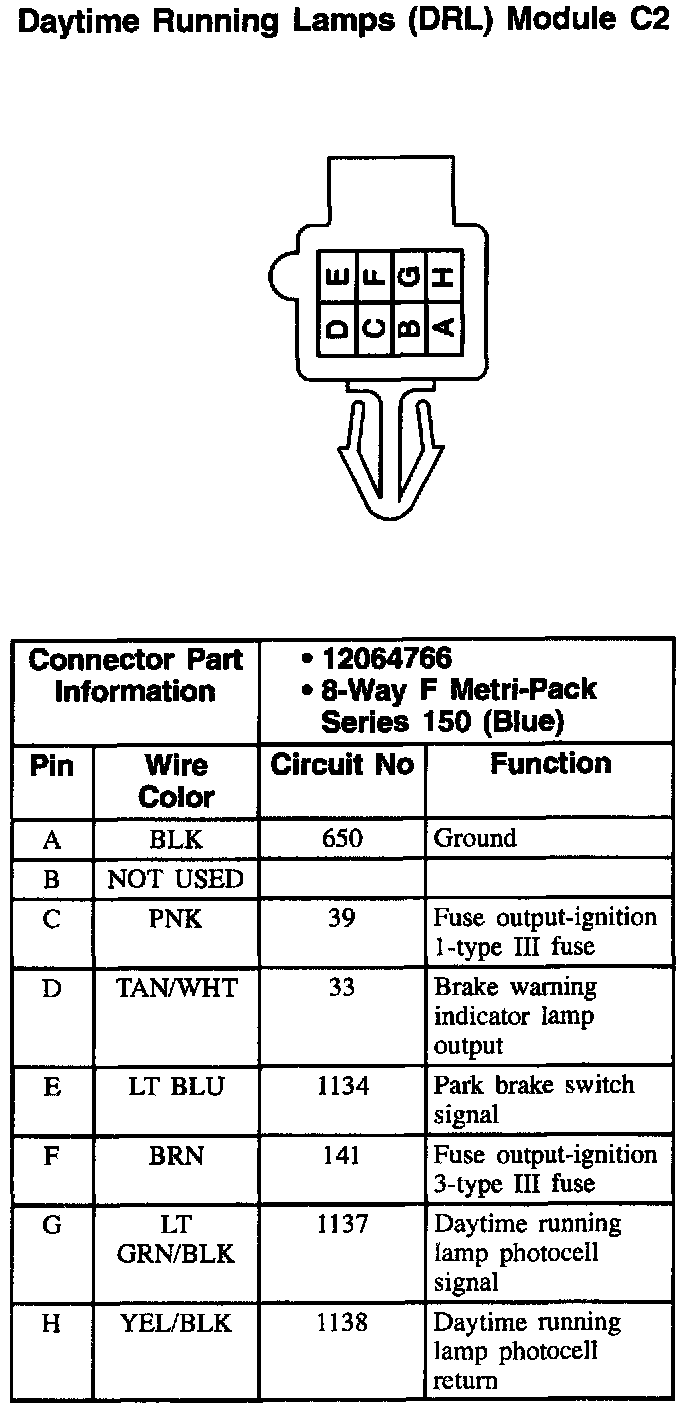

Daytime Running Lamps (DRL) Module C2:
