Fuel Injector

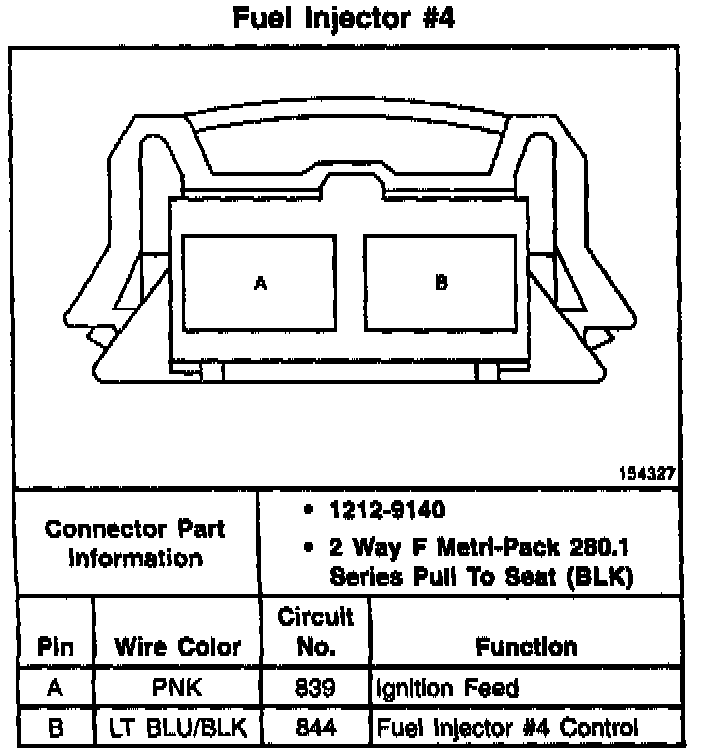

Connector:

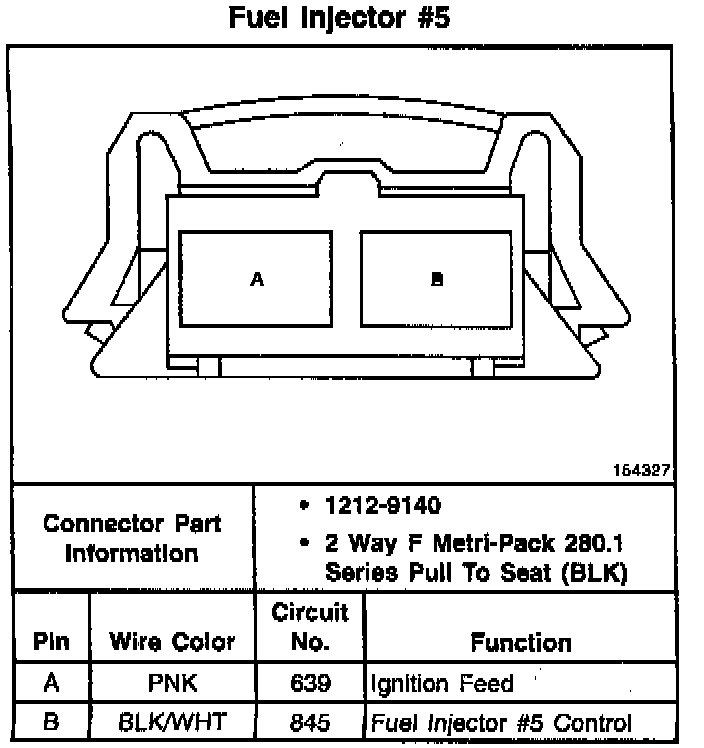

Connector:

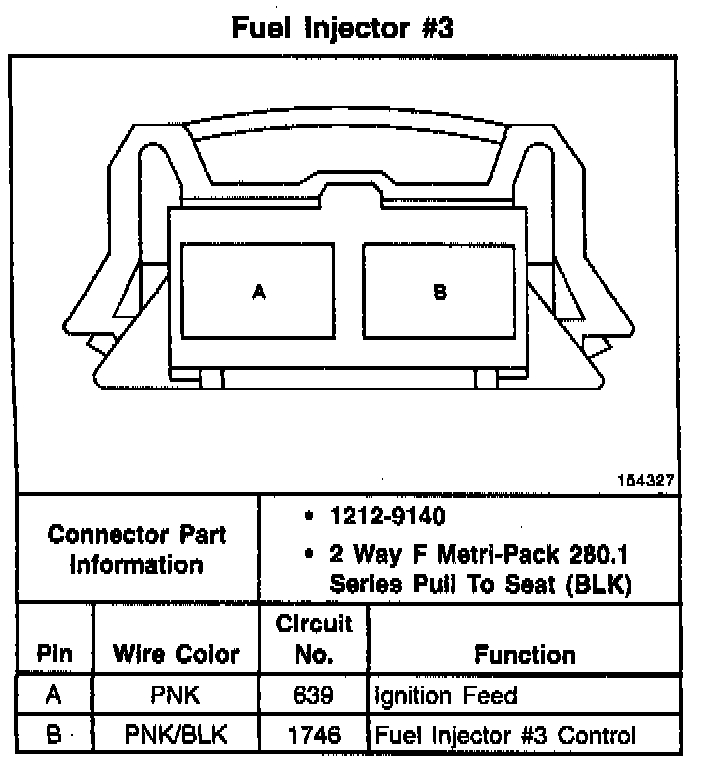

Connector:

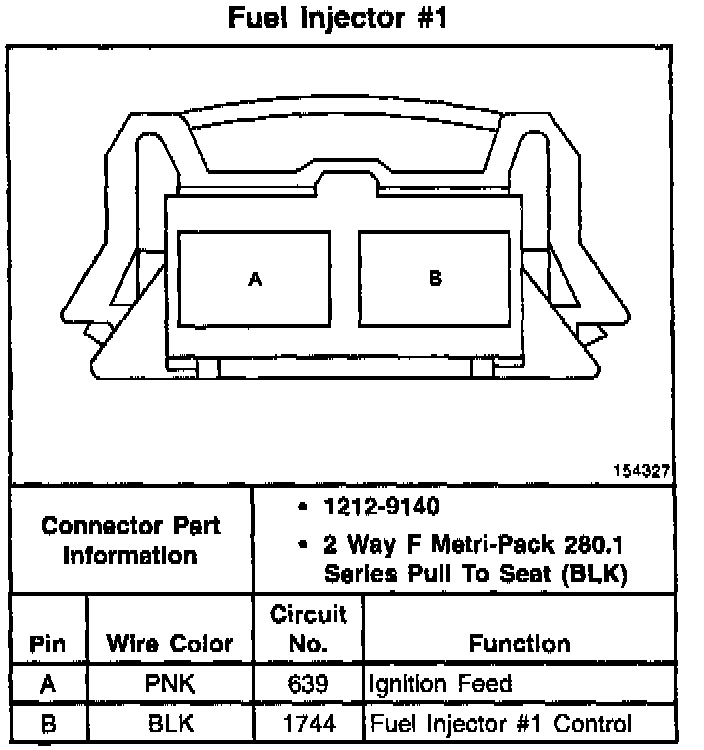

Connector:



Connector:



Connector:



Connector:



Connector:
