Home >> Pontiac >> 1998 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

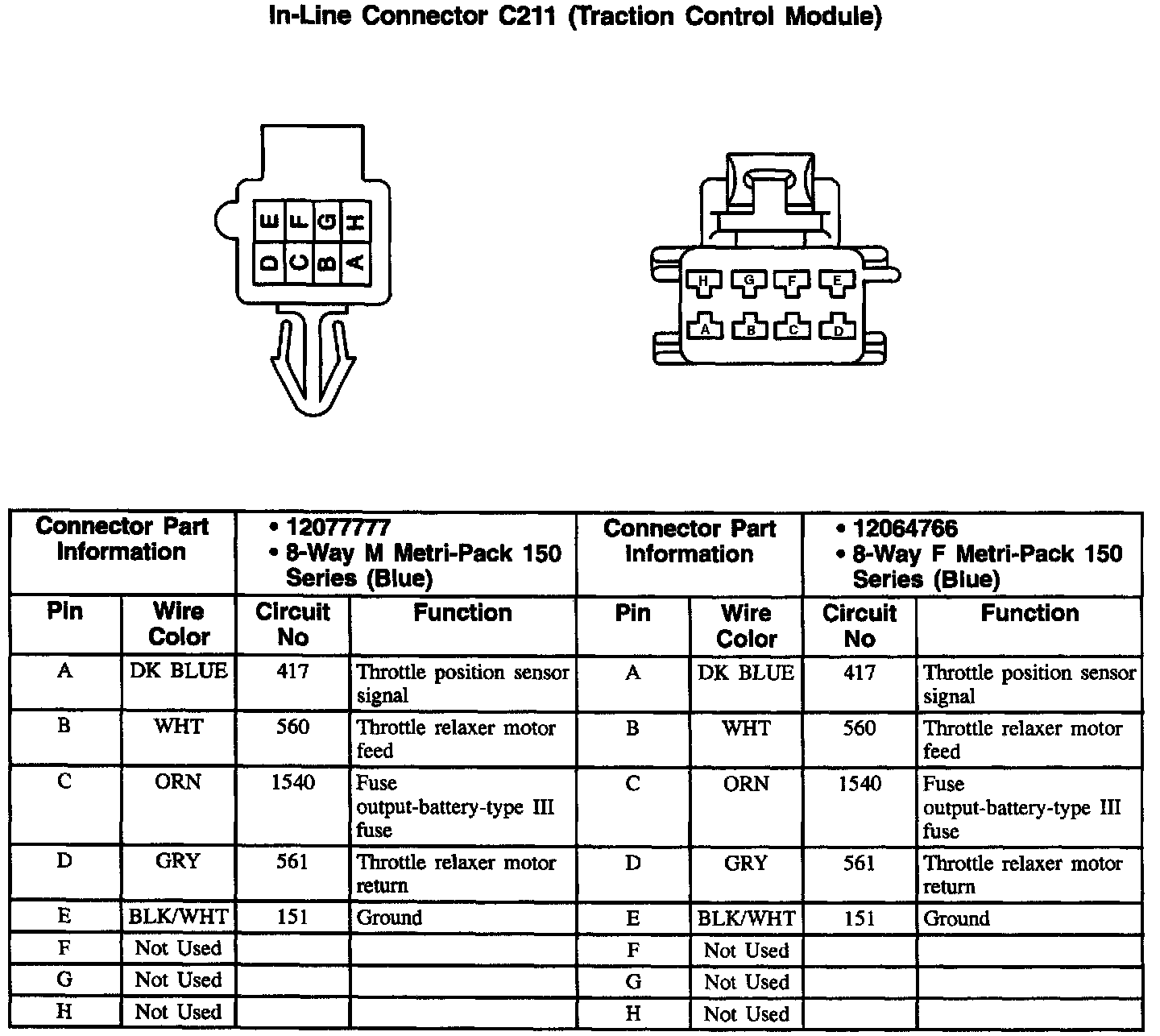

In-Line Connector C211 (Traction Control Module):
