Home >> Pontiac >> 1998 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> Right Rear (With NW9)

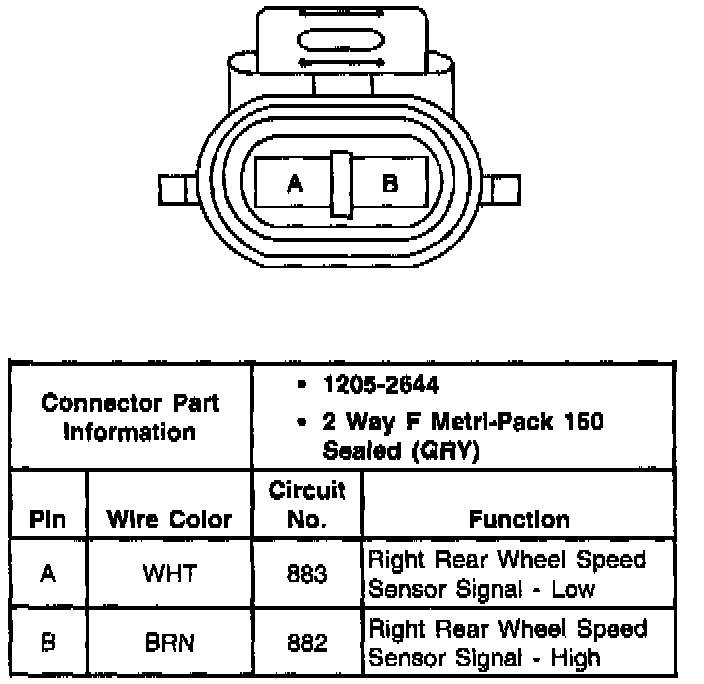

Right Rear (With NW9)
