Home >> Pontiac >> 1998 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> Wheel Speed Sensor Connector

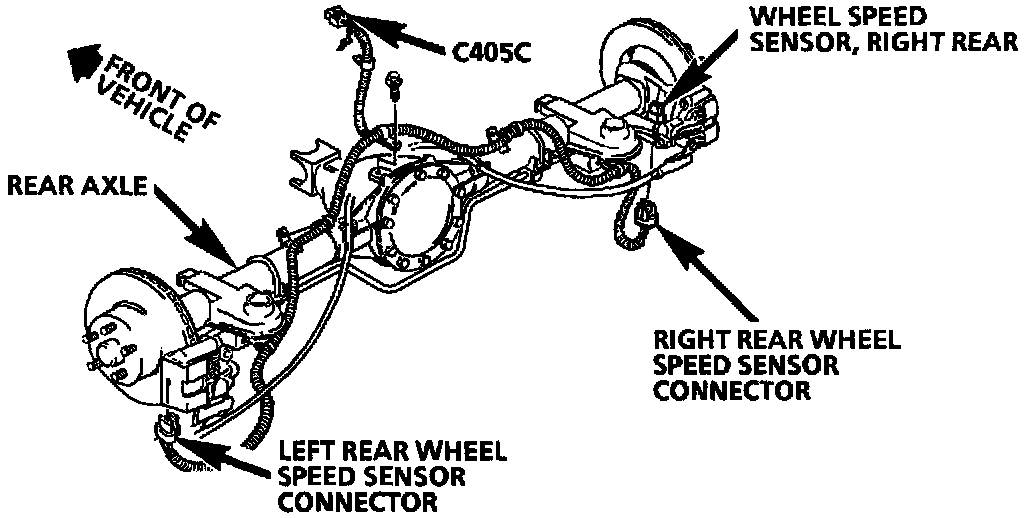

Wheel Speed Sensor Connector

Rear Axle And Differential (With Traction Control):
