Cooling System
>>
System Diagram
System Diagram

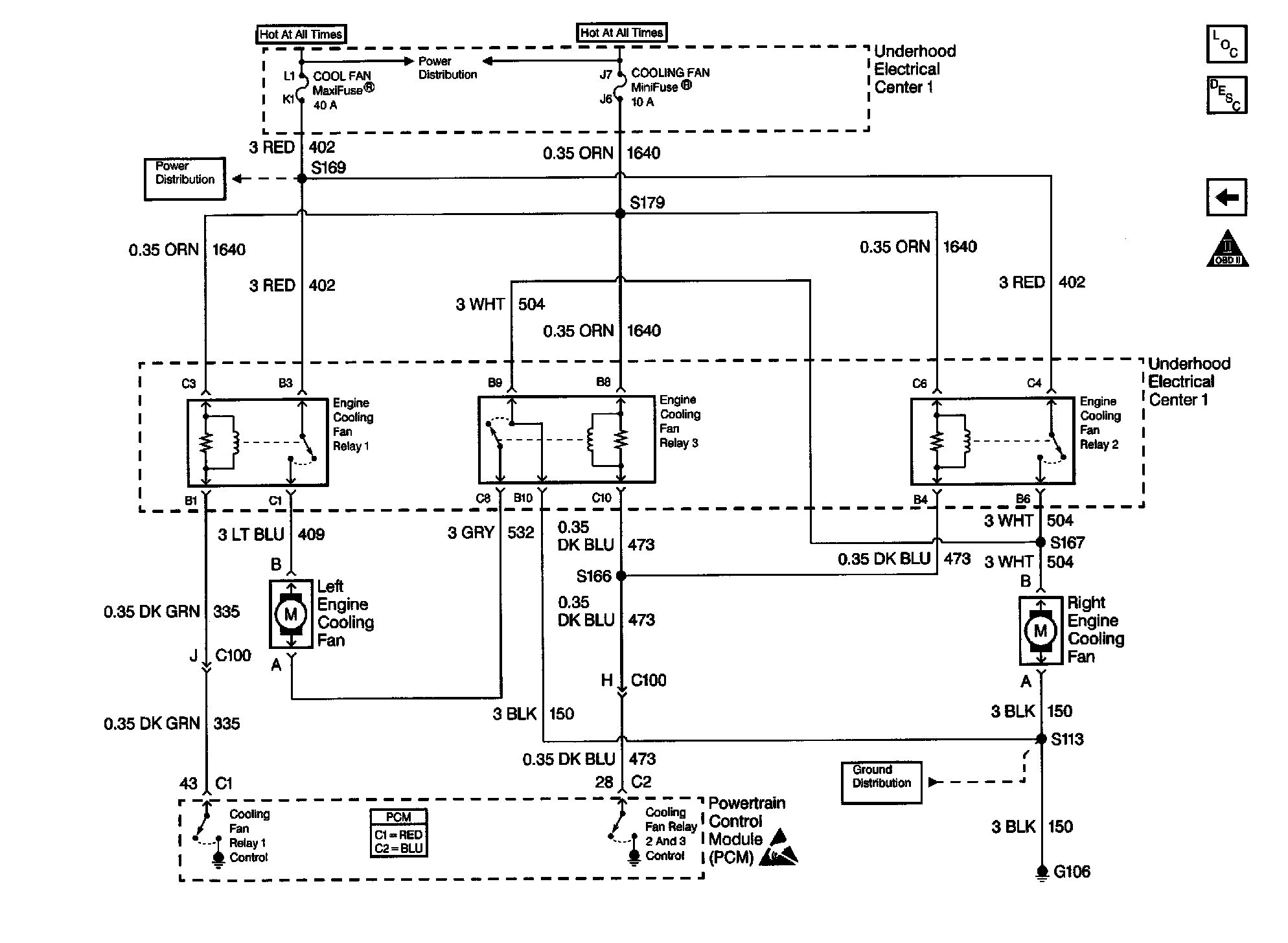

COOLING FAN SCHEMATICS (COOLING FANS 3.8L)
COOLING FAN SCHEMATICS (COOLING FANS 5.7L)
