Hazard Warning Lamps

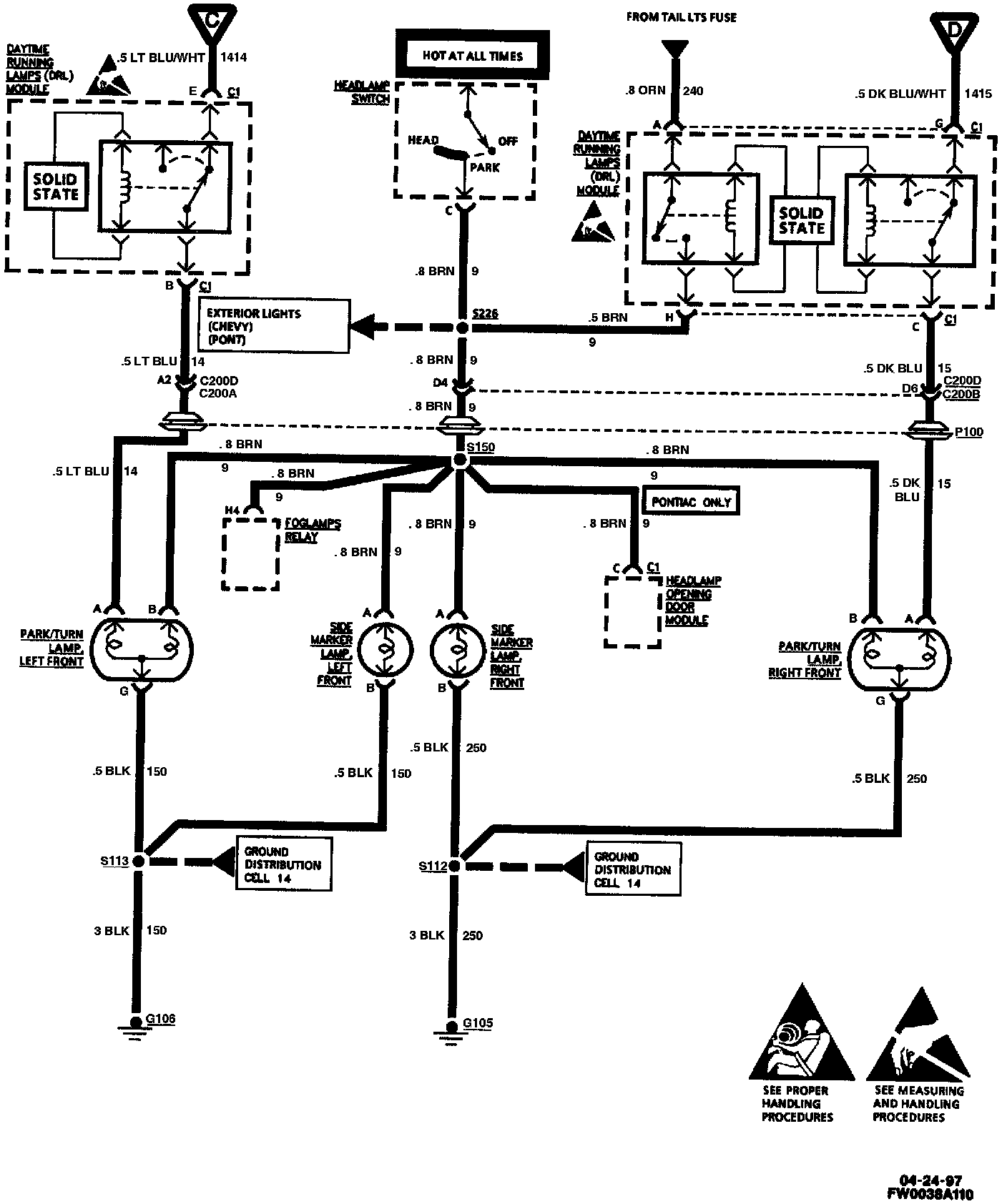

Exterior Lights Turn/Hazard/Stop (Part 1 Of 3):

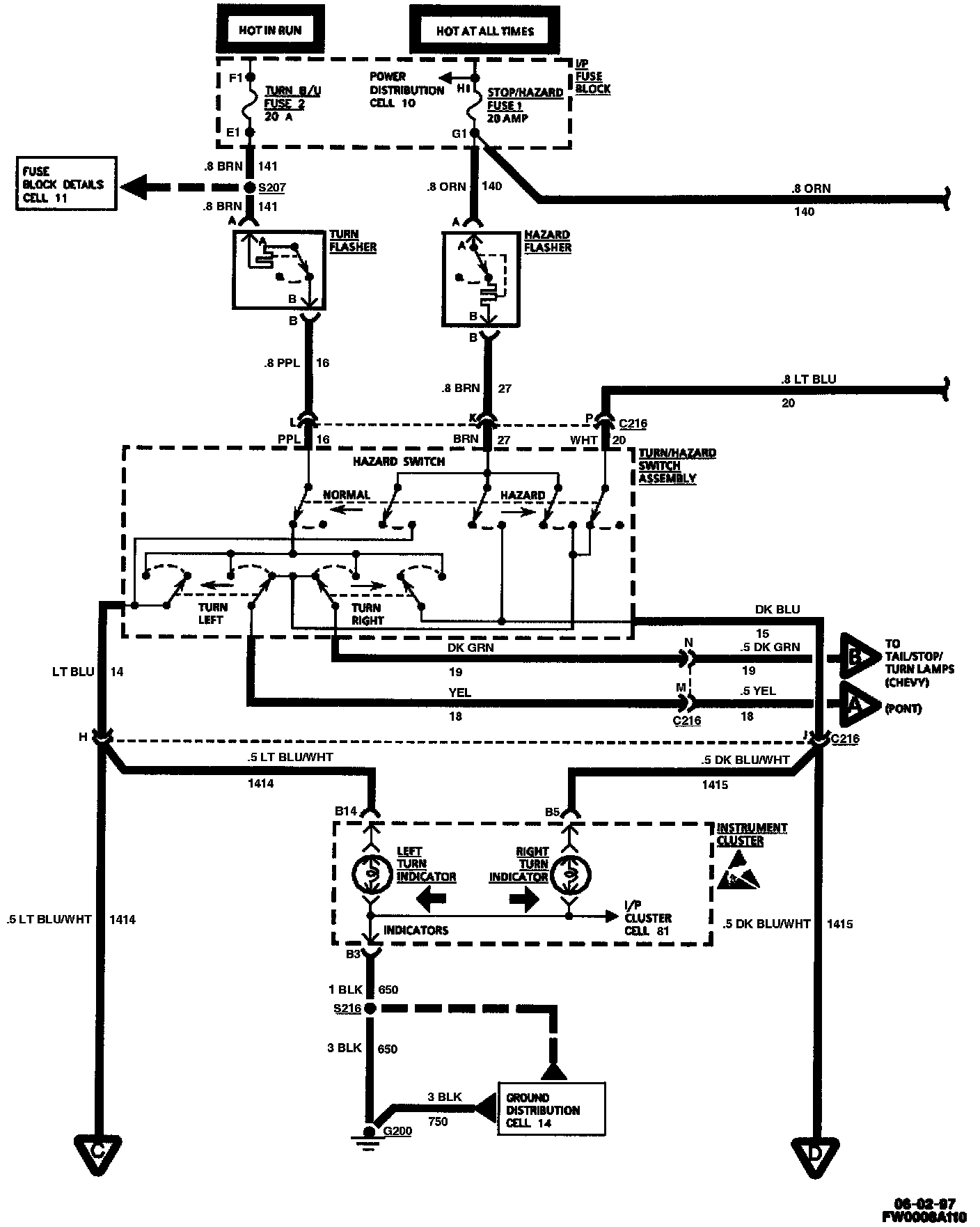

Exterior Lights Turn/Hazard/Stop (Part 2 Of 3):

Exterior Lights Turn/Hazard/Stop (Part 3 Of 3):

This Diagram is part of the complete set of lighting diagrams located under "Lighting and Horns/Interior Lamps". Refer to this area if you need to find the accompanying diagrams or for testing information.
Electrical Diagrams Testing and Inspection
