Tail Lamp

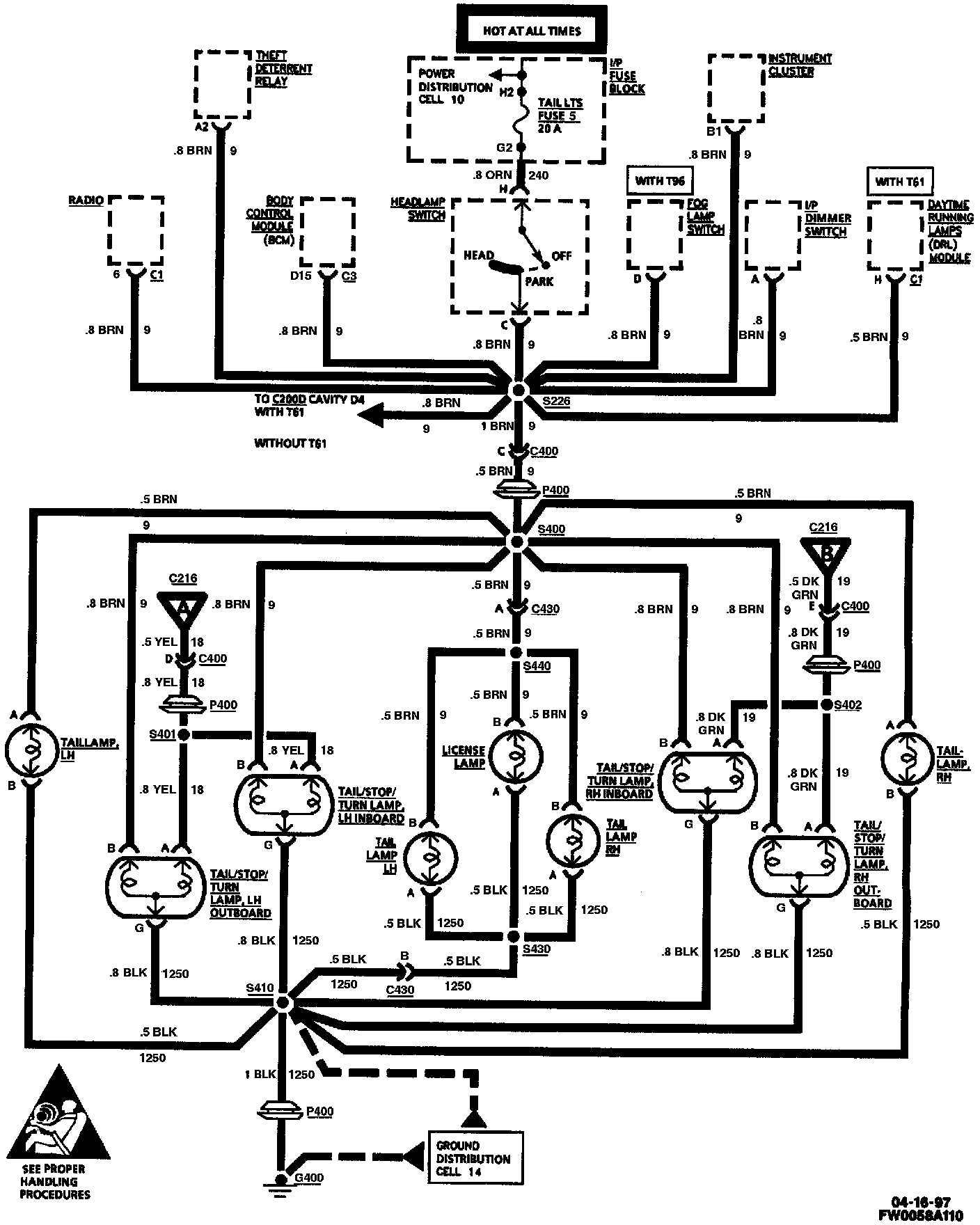

Exterior Lights Rear Marker/License/Tail/Stop:

This Diagram is part of the complete set of lighting diagrams located under "Lighting and Horns/Interior Lamps". Refer to this area if you need to find the accompanying diagrams or for testing information.
Electrical Diagrams Testing and Inspection
