Pontiac
>>
1998
>>
Firebird V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Hydraulic Control Assembly - Antilock Brakes
>>

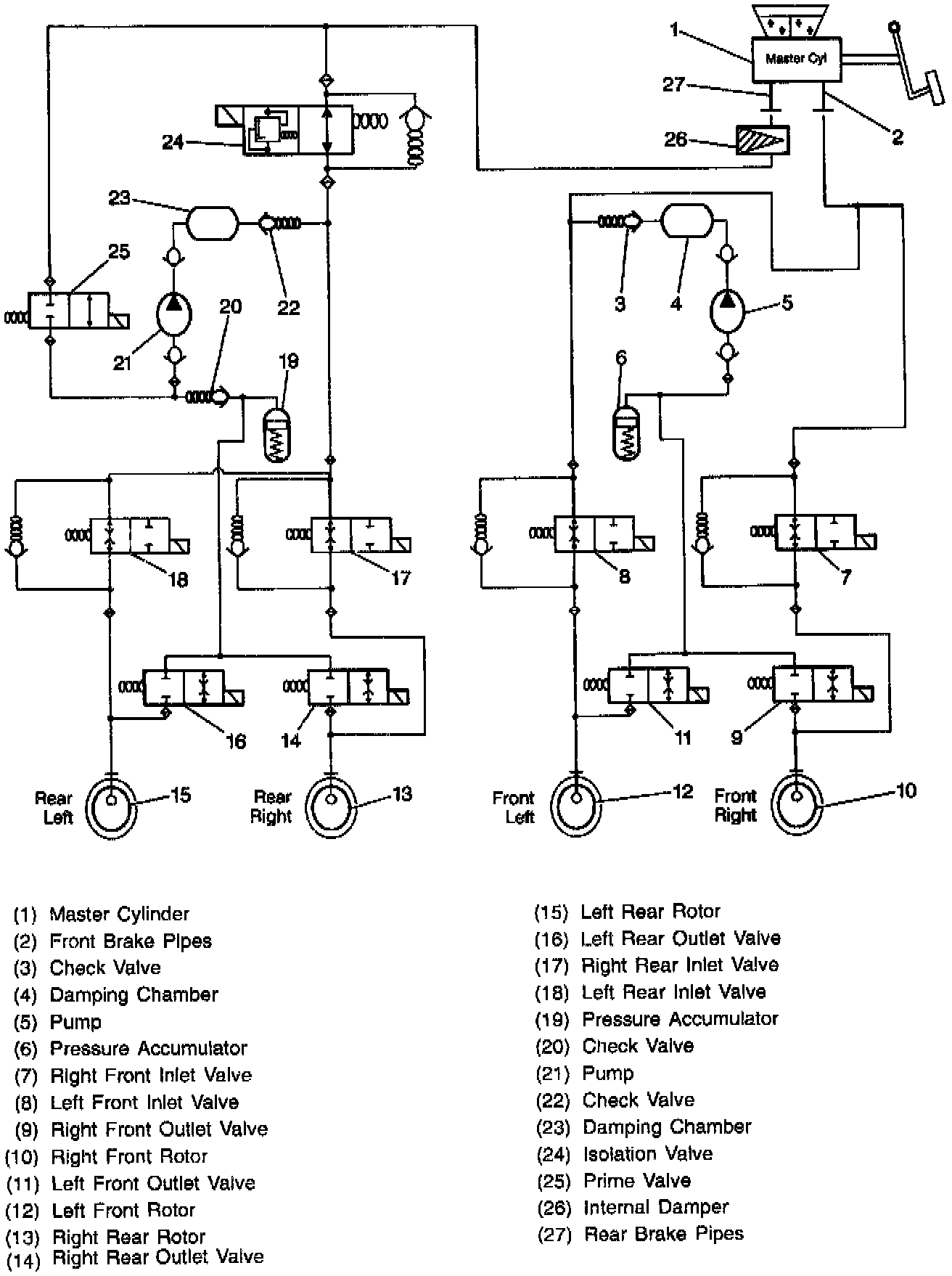

Bpmv Hydraulic Flow Chart (With TCS)
Bpmv Hydraulic Flow Chart (With TCS)
