Home >> Pontiac >> 1998 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning >> Valve Control Vacuum Selector

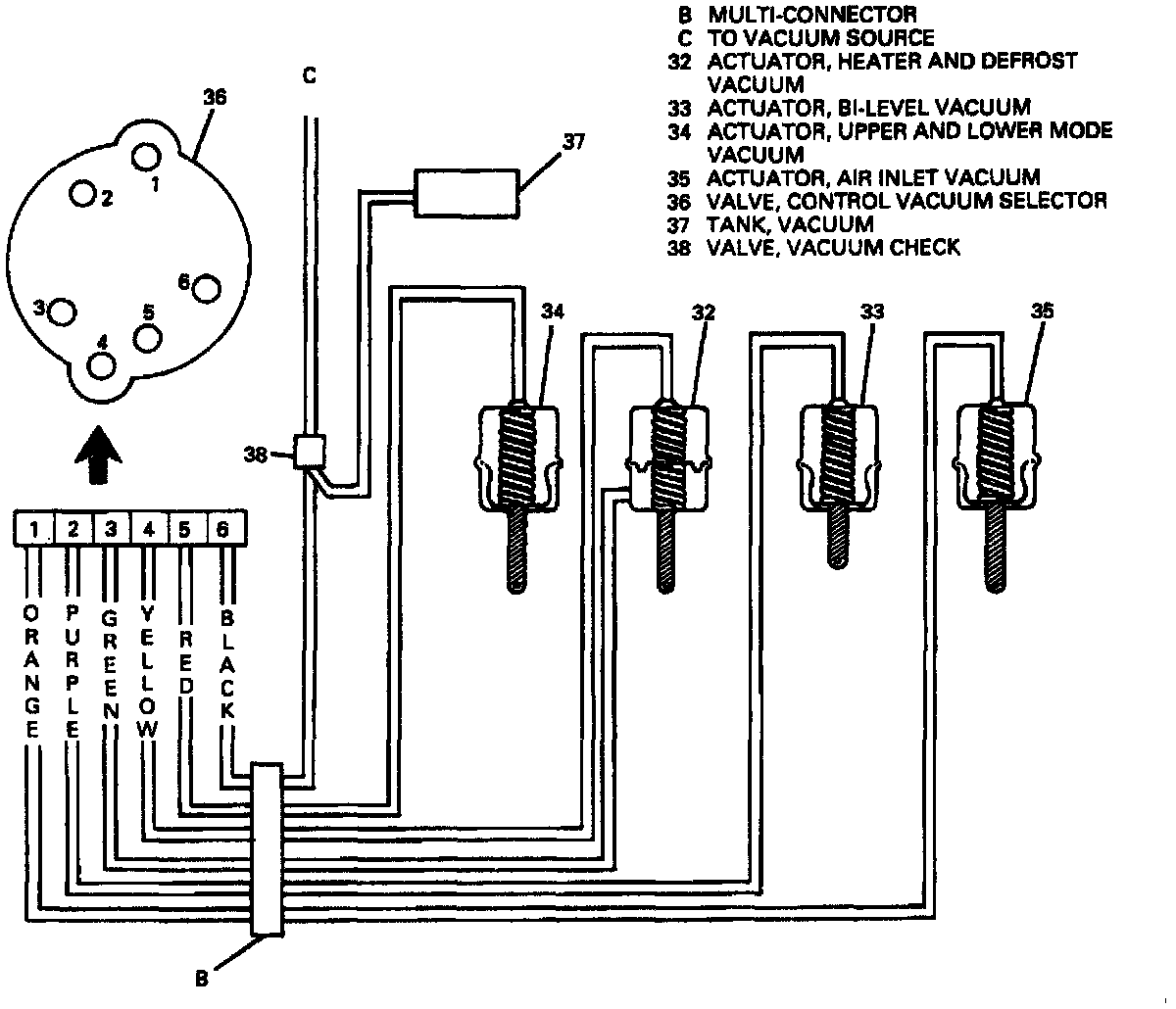

Valve Control Vacuum Selector
