Thread Repair Specifications

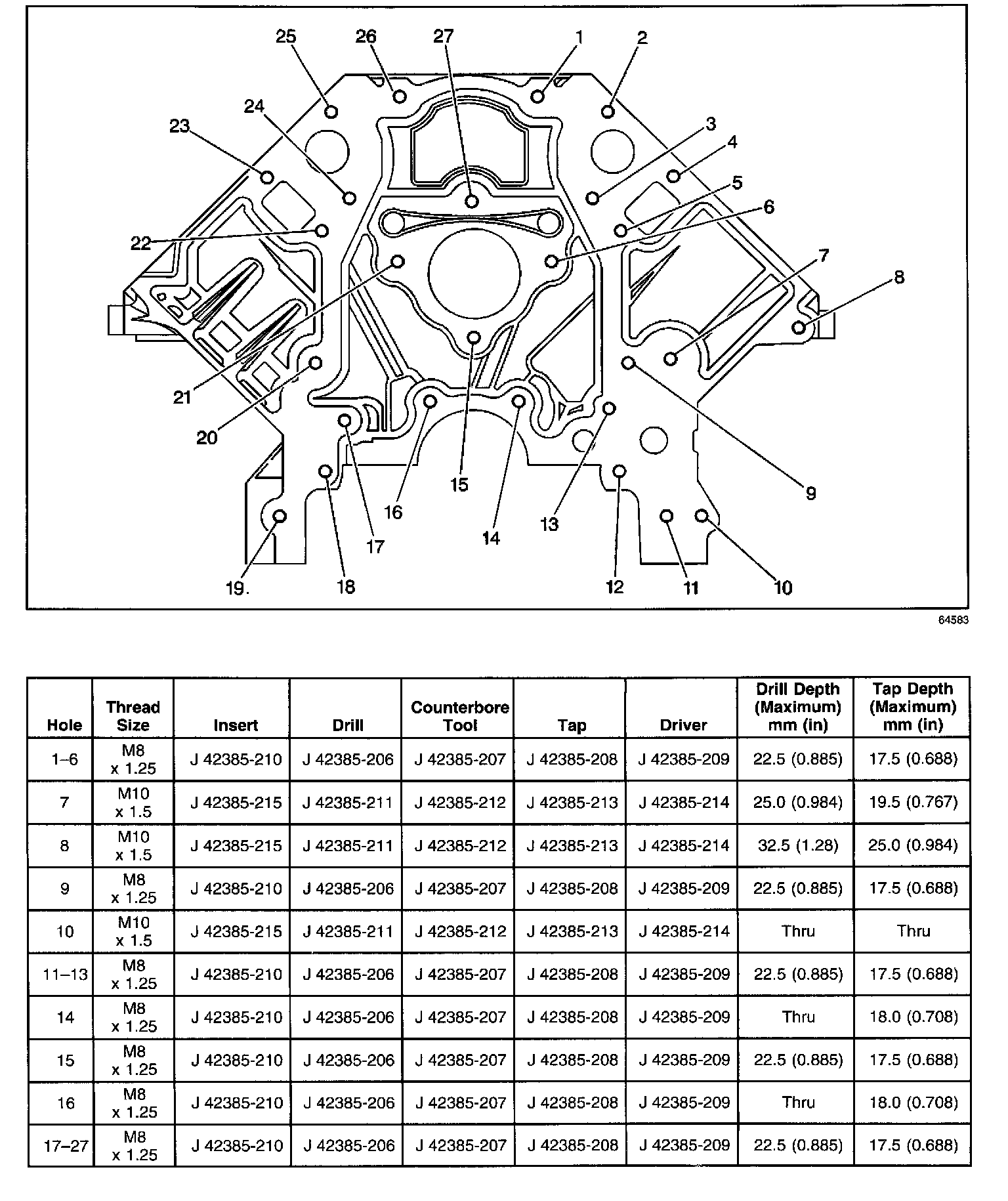

ENGINE BLOCK-FRONT VIEW
ENGINE BLOCK-REAR VIEW
ENGINE BLOCK-LEFT SIDE VIEW
ENGINE BLOCK-RIGHT SIDE VIEW
ENGINE BLOCK-BOTTOM VIEW
ENGINE BLOCK-TOP VIEW
CYLINDER HEAD-TOP VIEW

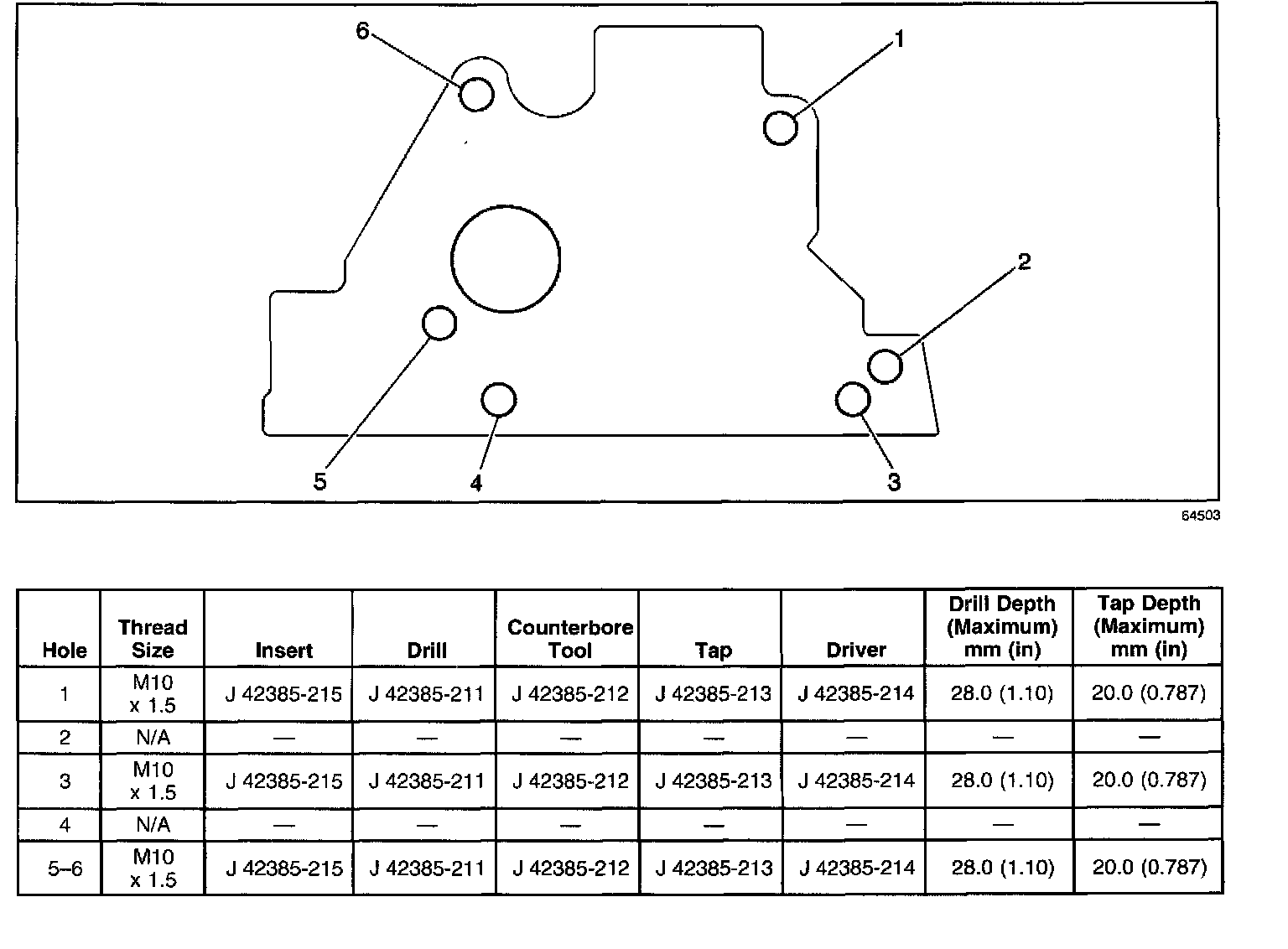

CYLINDER HEAD-END VIEW

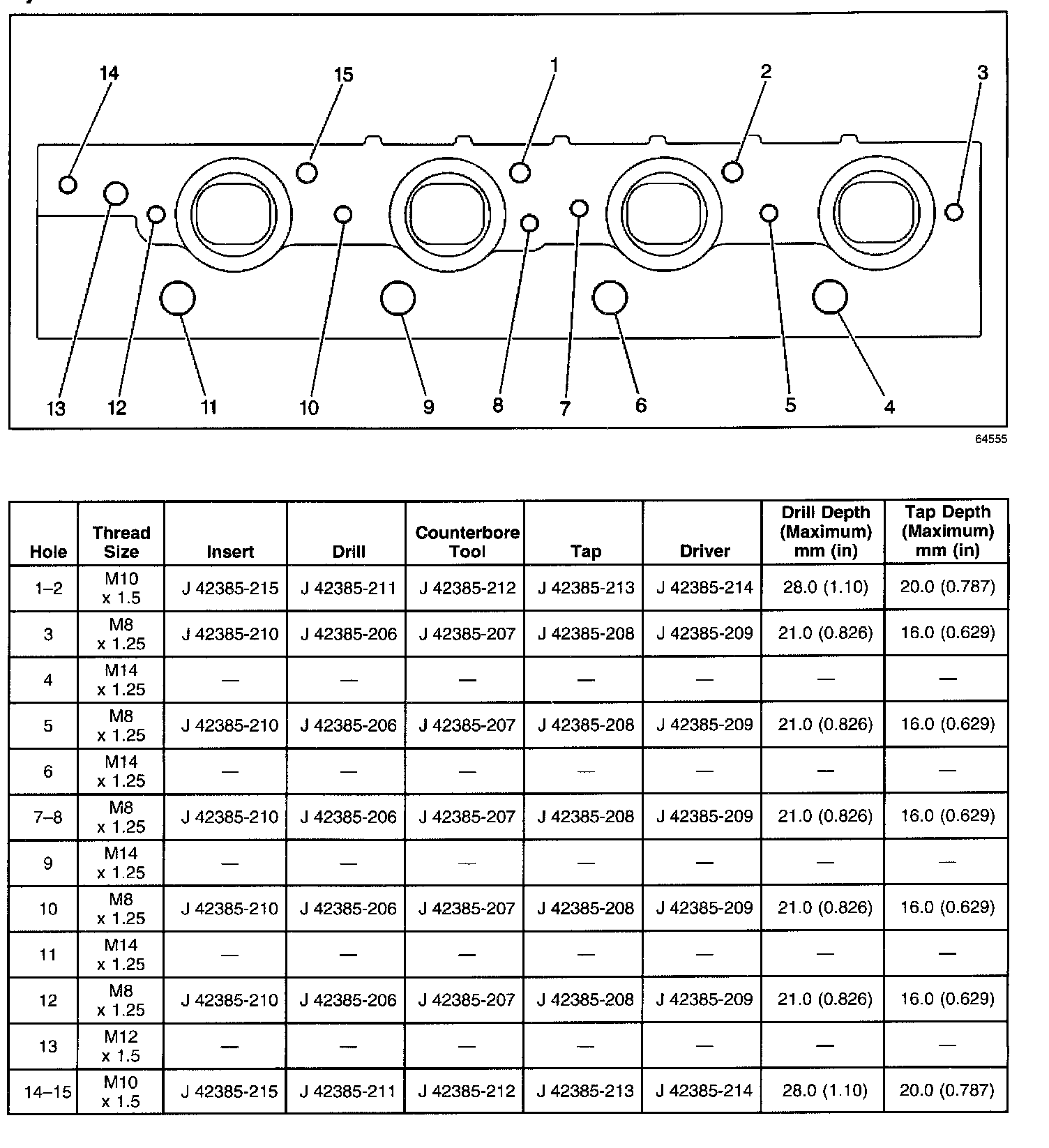

CYLINDER HEAD-EXHAUST MANIFOLD DECK VIEW

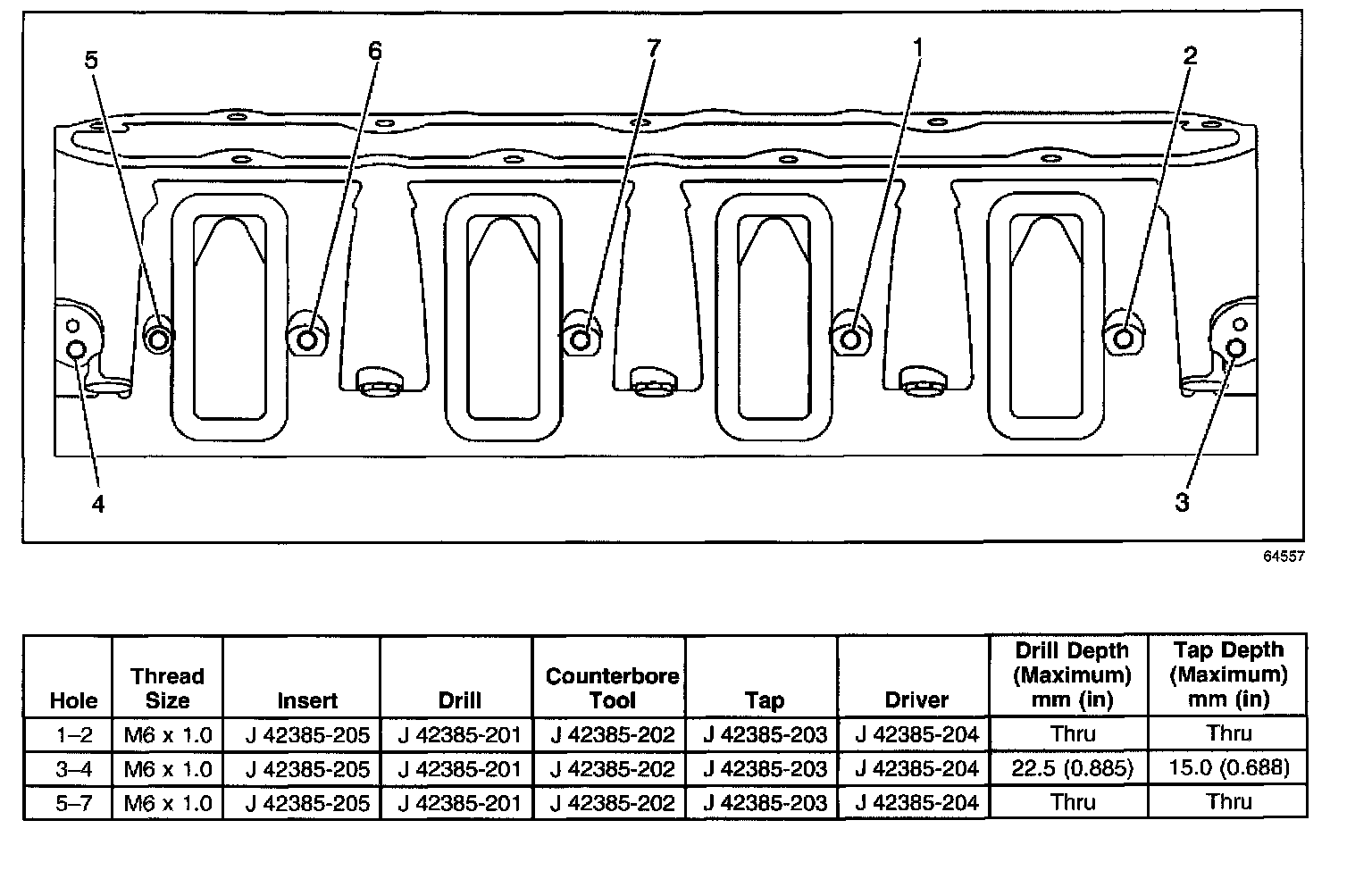

CYLINDER HEAD-INTAKE MANIFOLD DECK VIEW
