Fog Lights Schematics

Fog Lights Schematics

Cell 103 (Chevrolet)

Cell 103 (Pontiac)

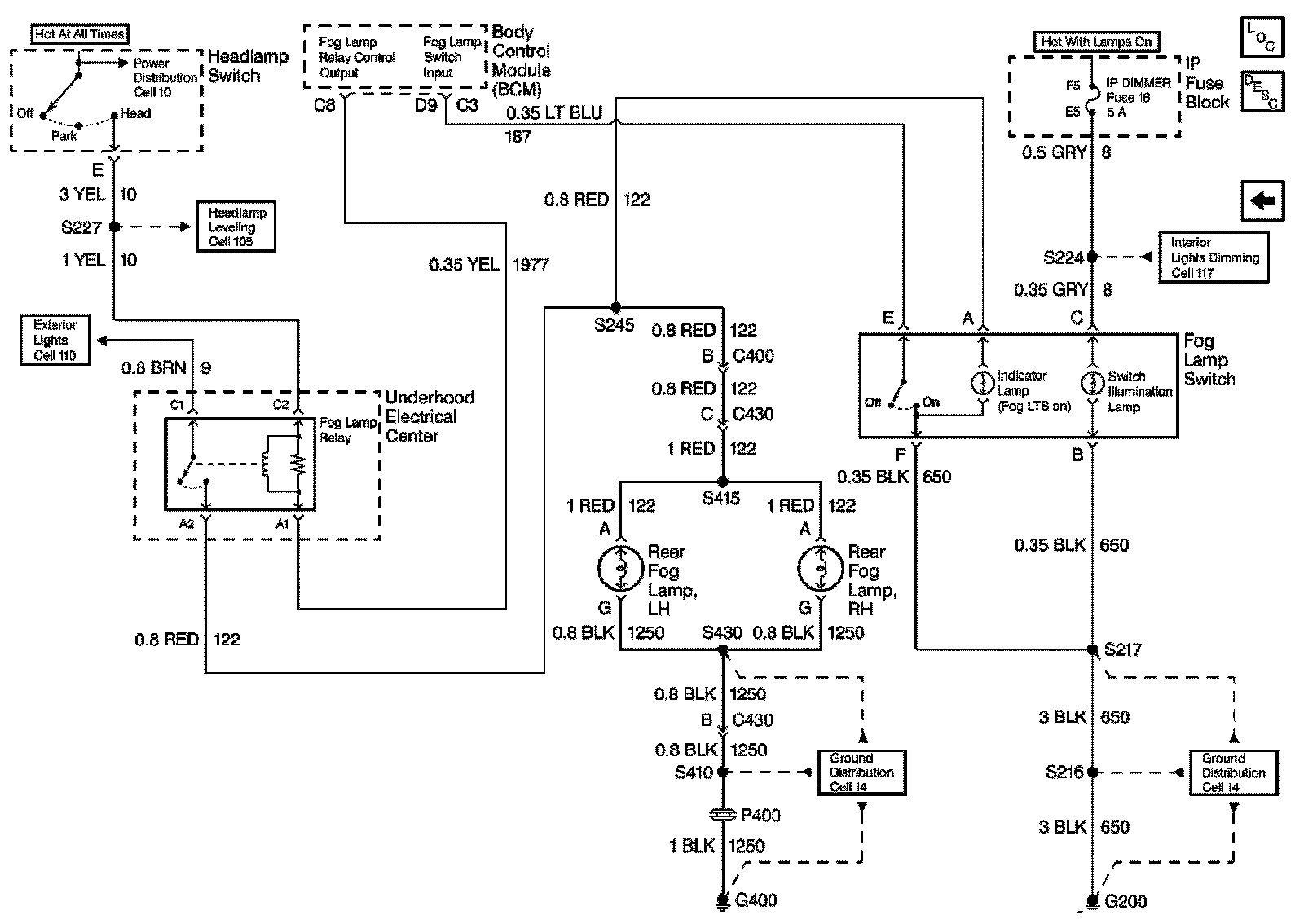

Cell 103: Rear Fog Lamps (Europe)
