Interior Lights Dimming Schematics





Cell 117: IP Dimmer Switch






Cell 117: Instrument Cluster, Radio and Switches

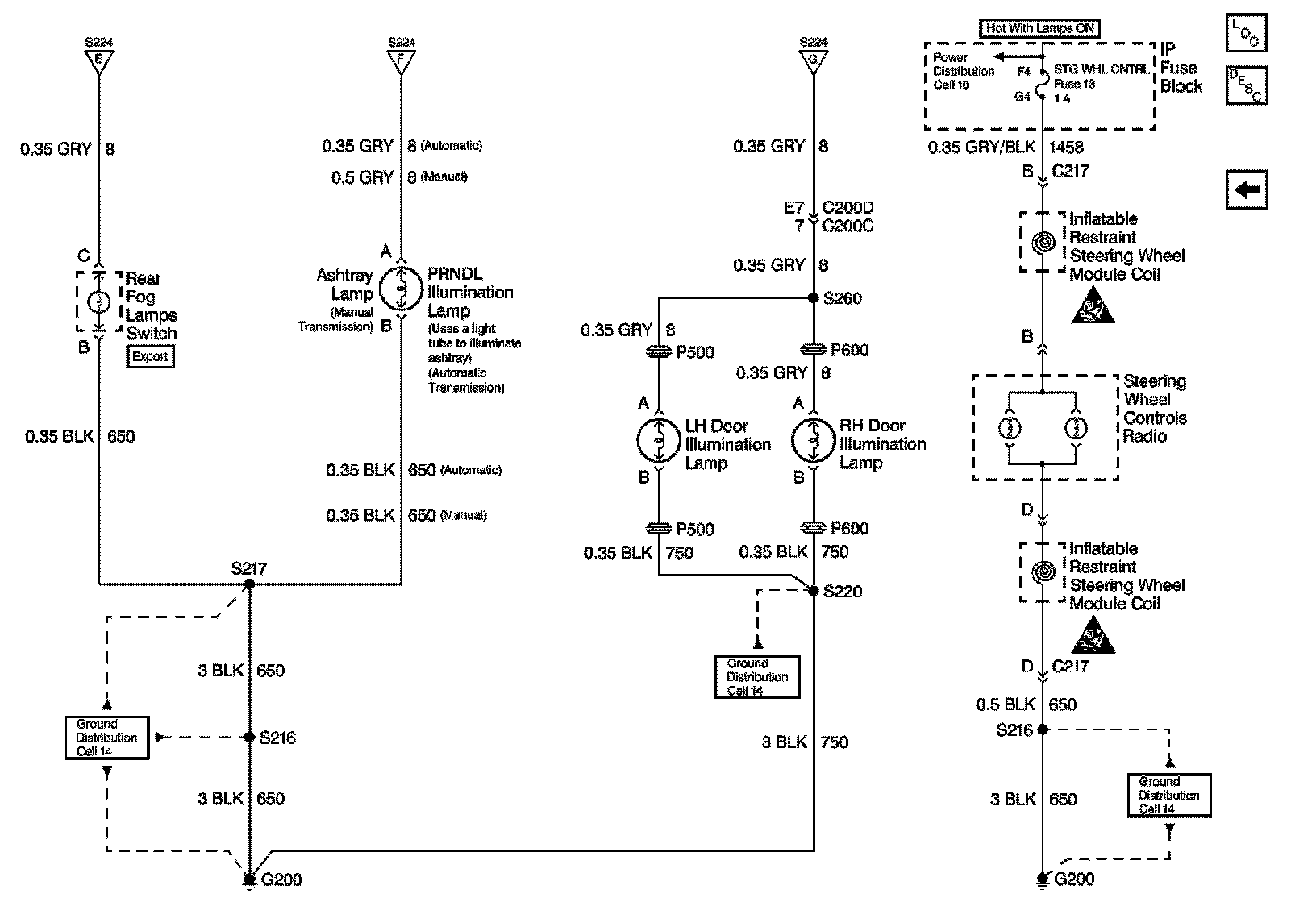

Cell 117: Doors, PRNDL, Rear Fog Lamp Switch, Steering and Wheel Controls
