Fog Lamp Replacement - Rear

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Disconnect the rear fog lamp electrical connector.

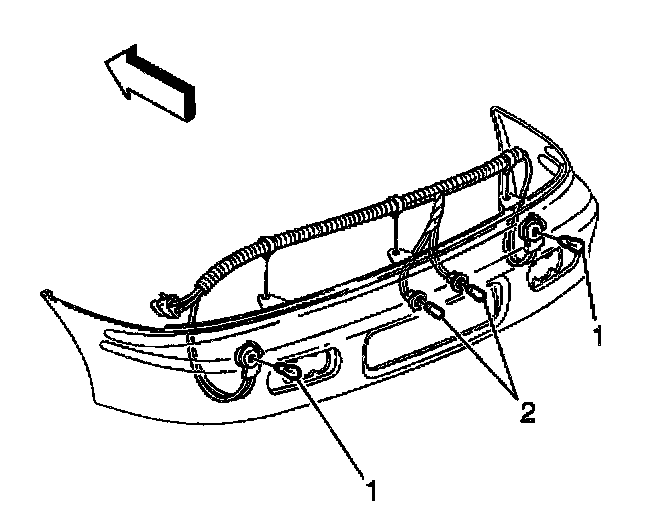

3. Remove the rear fog lamp bulb (1) from the harness socket.

INSTALLATION PROCEDURE
1. Install the rear fog lamp bulb (1) to the harness socket.
2. Connect the rear fog lamp electrical connector.
3. Lower the vehicle.
