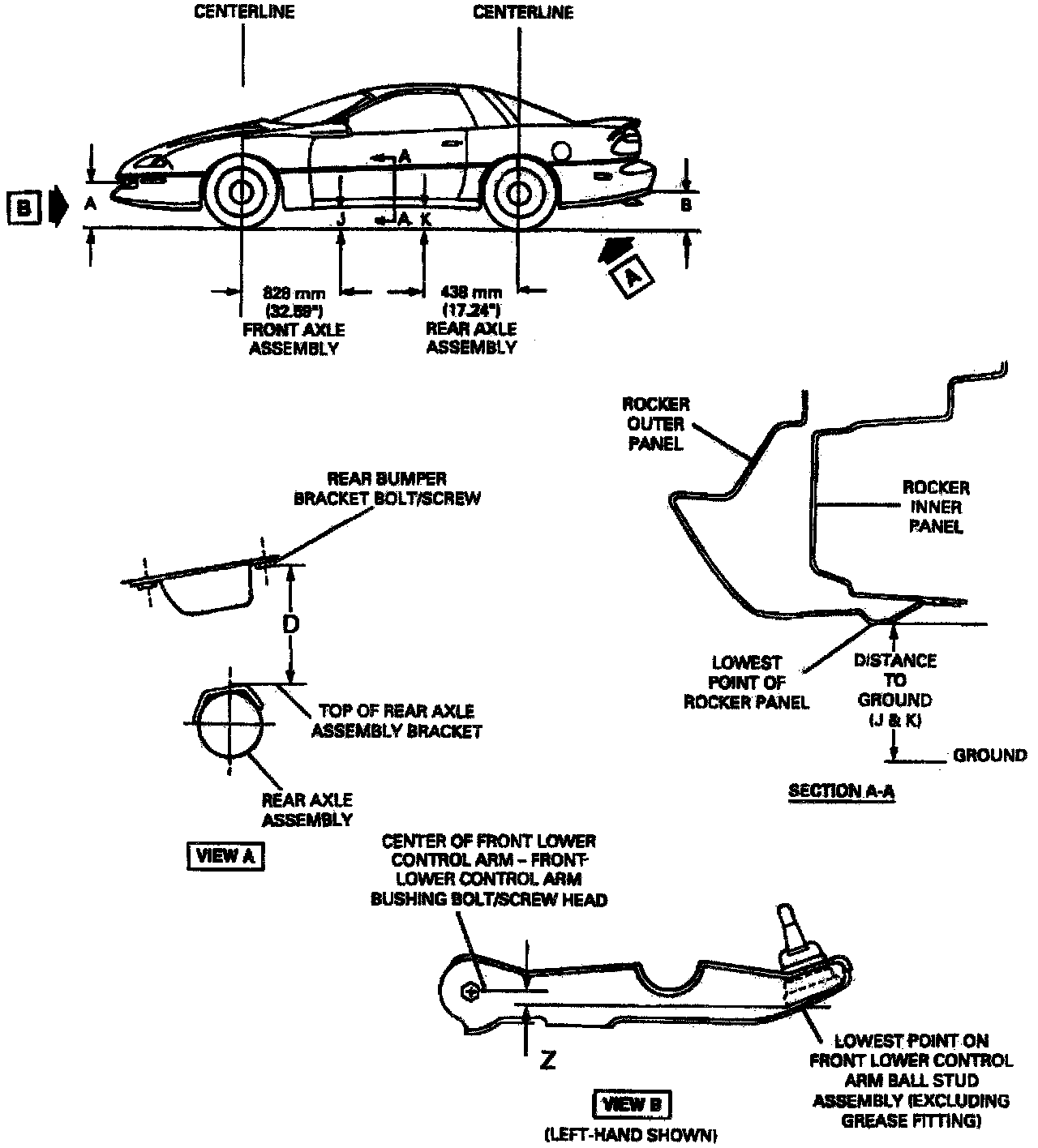

Vehicle Ride (Trim) Height Specifications

Trim Height Specification:

Suspension: F41
Tire: 235-55
A: 420 mm (16.5 in)
B: 367 mm (14.4 in)
D: 118 mm (4.6 in)
J: 204 mm (8.0 in)
K: 208 mm (8.4 in)
Z: 30 mm (1.2 in)

Suspension: FE2
Tire: 235-55
A: 420 mm (16.5 in)
B: 367 mm (14.4 in)
D: 118 mm (4.6 in)
J: 204 mm (8.0 in)
K: 208 mm (8.4 in)
Z: 31 mm (1.2 in)

Suspension: FE2
Tire: 245-50
A: 420 mm (16.5 in)
B: 367 mm (14.4 in)
D: 125 mm (4.9 in)
J: 204 mm (8.0 in)
K: 208 mm (8.4 in)
Z: 37 mm (1.5 in)
