C1221

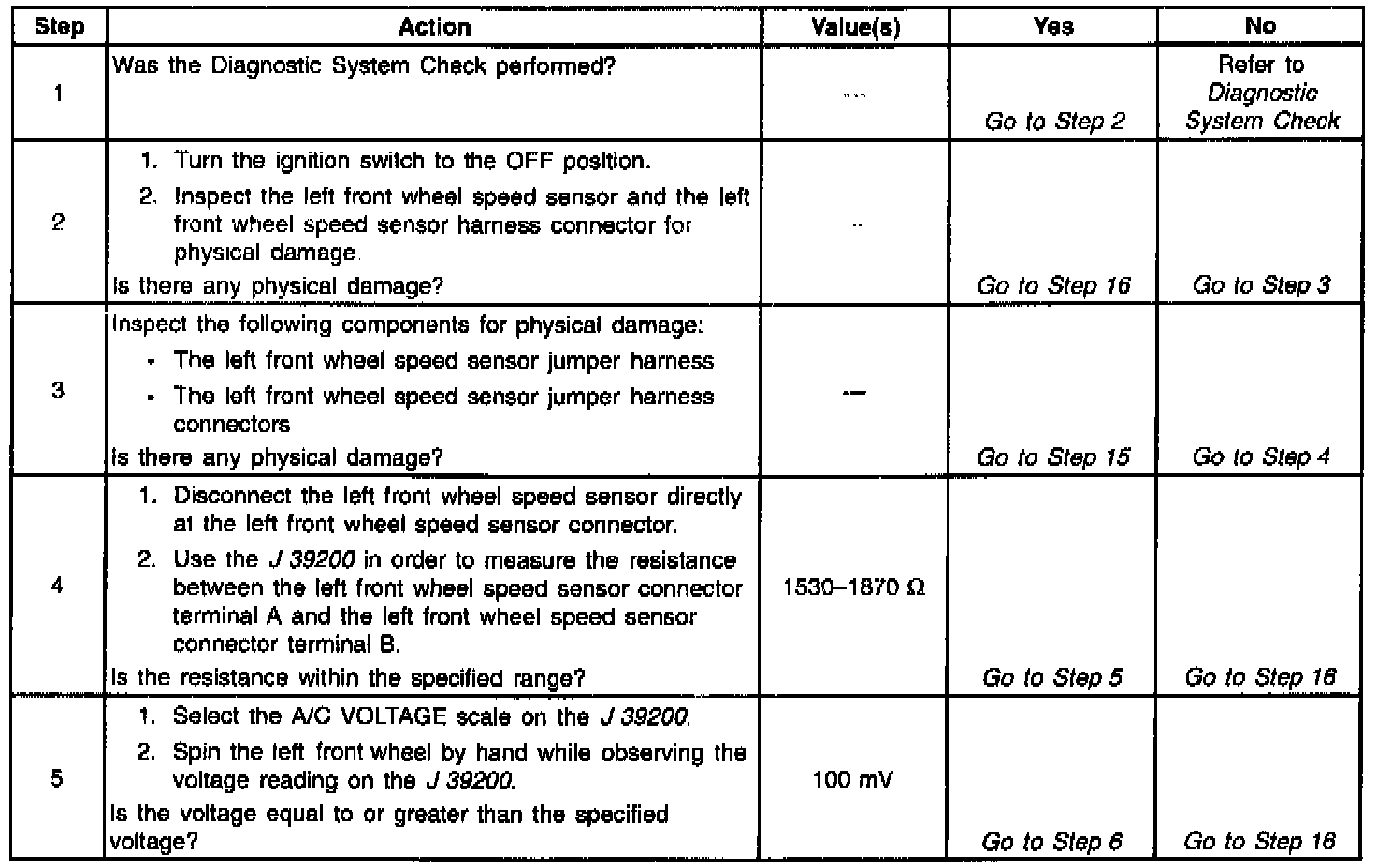

DTC C1221 LF Wheel Speed Sensor Input Signal Is 0 Part 1 Of 3:

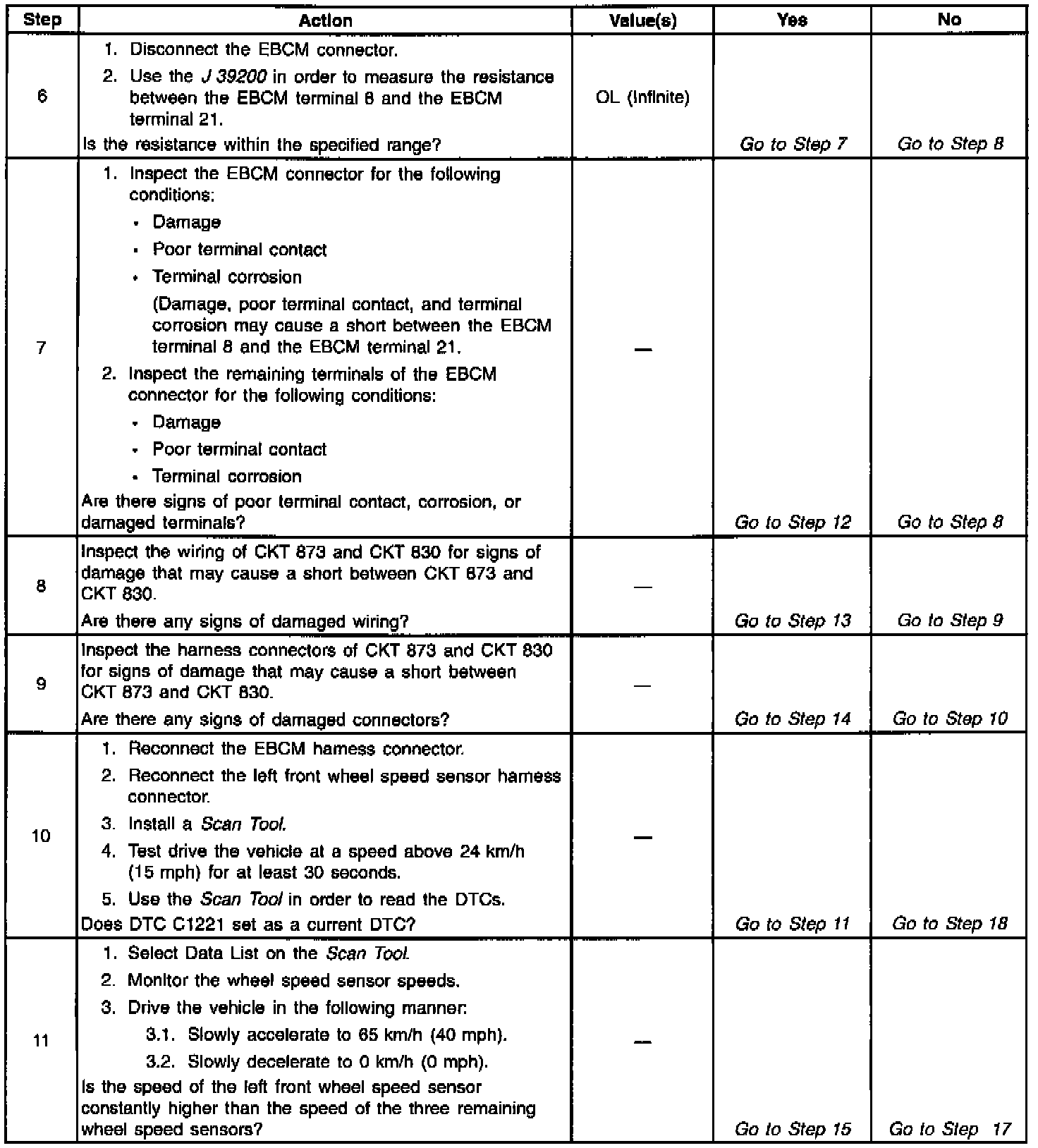

DTC C1221 LF Wheel Speed Sensor Input Signal Is 0 Part 2 Of 3:

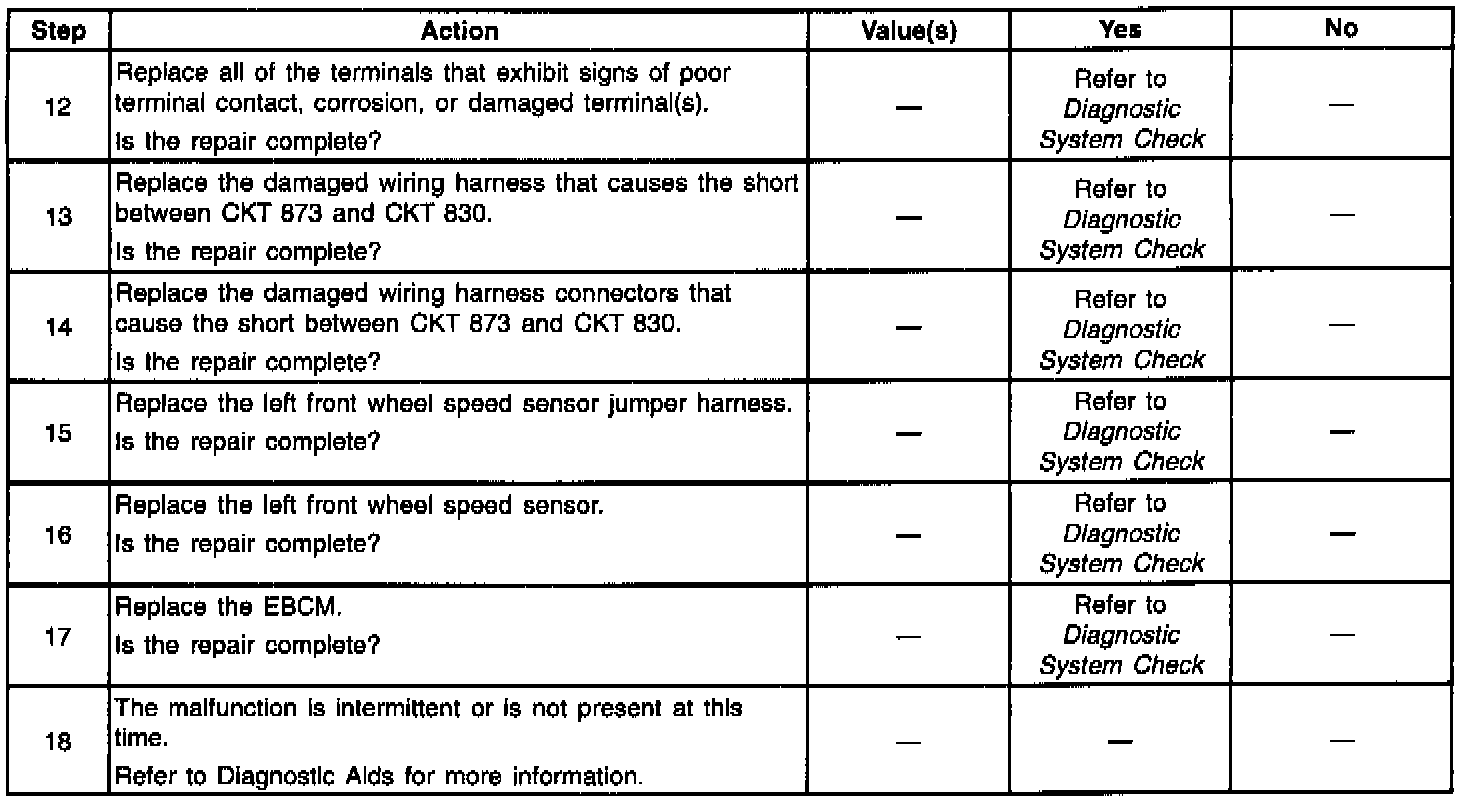

DTC C1221 LF Wheel Speed Sensor Input Signal Is 0 Part 3 Of 3:

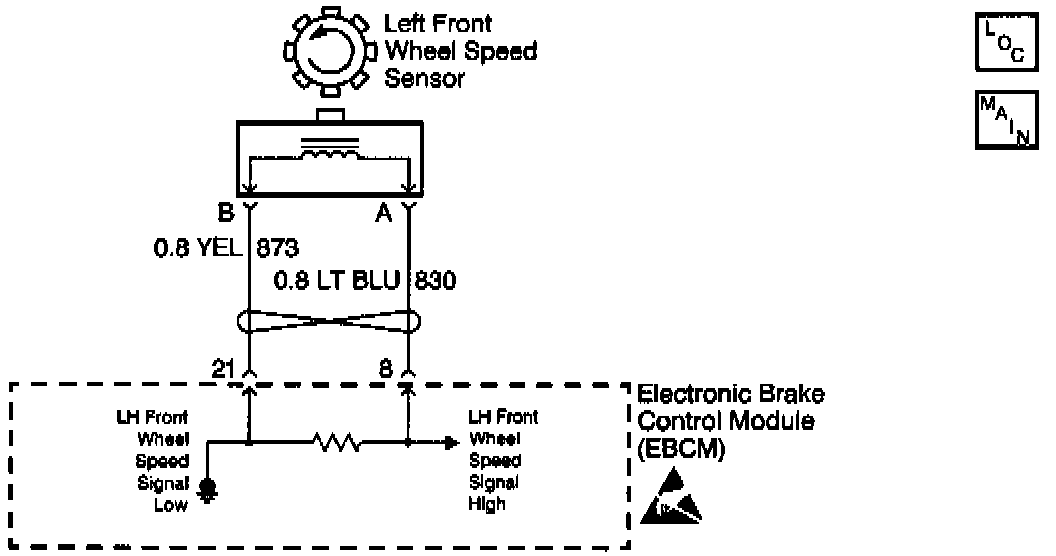

CIRCUIT DESCRIPTION
As a toothed ring passes by the wheel speed sensor, changes in the electromagnetic field cause the wheel speed sensor to produce an AC voltage signal. The frequency of the AC voltage signal is proportional to the wheel speed. The amplitude of the AC voltage signal is directly related to wheel speed and the proximity of the wheel speed sensor to the toothed ring. The proximity of the wheel speed sensor to the toothed ring is also referred to as the air gap.

CONDITIONS FOR SETTING THE DTC
DTC C1221 can set when the vehicle is not in an ABS stop.

A malfunction exists if both of the following conditions occur:
^ The left front wheel speed sensor input signal equals zero.
^ The vehicle's reference speed is greater than 8 km/h (5 mph)

ACTION TAKEN WHEN THE DTC SETS
^ A malfunction Diagnostic Trouble Code (DTC) stores.
^ The ABS disables.
^ The ABS warning indicator turns on.

CONDITIONS FOR CLEARING THE DTC
^ The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
^ 100 drive cycles pass with no DTC(s) detected. A drive cycle consists of starting the vehicle, driving the vehicle over 16 km/h (10 mph), stopping and then turning the ignition switch to the OFF position.

DIAGNOSTIC AIDS
The following conditions may cause an intermittent malfunction:
^ A poor connection
^ Rubbed-through wire insulation
^ A broken wire inside the insulation

Use the enhanced diagnostic function of the Scan Tool in order to measure the frequency of the malfunction.

If the customer's comments reflect that the amber ABS warning indicator is on only during moist environmental changes (rain, snow, vehicle wash), inspect all the wheel speed sensor circuitry for signs of water intrusion. If the DTC is not current, clear all DTCs and simulate the effects of water intrusion by using the following procedure:
1. Spray the suspected area with a five percent saltwater solution.
Add two teaspoons of salt to twelve ounces of water to make a five percent saltwater solution.
2. Test drive the vehicle over various road surfaces (bumps, turns, etc.) above 24 km/h (15 mph) for at least 30 seconds.
3. If the DTC returns, replace the suspected harness.

Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
^ Backed out terminals
^ Improper mating
^ Broken locks
^ Improperly formed or damaged terminals
^ Poor terminal-to-wiring connections
^ Physical damage to the wiring harness

Resistance of the wheel speed sensor will increase with an increase in sensor temperature.

Use the following procedure in when replacing a wheel speed sensor or harness:
1. Inspect the wheel speed sensor terminals and harness connector for corrosion and/or water intrusion.
2. Replace the wheel speed sensor and jumper harness if evidence of corrosion or water intrusion exists.

Important: Zero the J 39200 test leads before making any resistance measurements. Refer to the J 39200 user's manual.

Important: Difficulty may occur when trying to locate the intermittent malfunctions in the wheel speed sensor circuit.

Do not disturb any of the electrical connections. Change electrical connections only when instructed to do so by a step in the diagnostic table.

Changing the electrical connections at the correct time will ensure that an intermittent electrical connection will not be corrected until the source of the malfunction is found.
