P0719

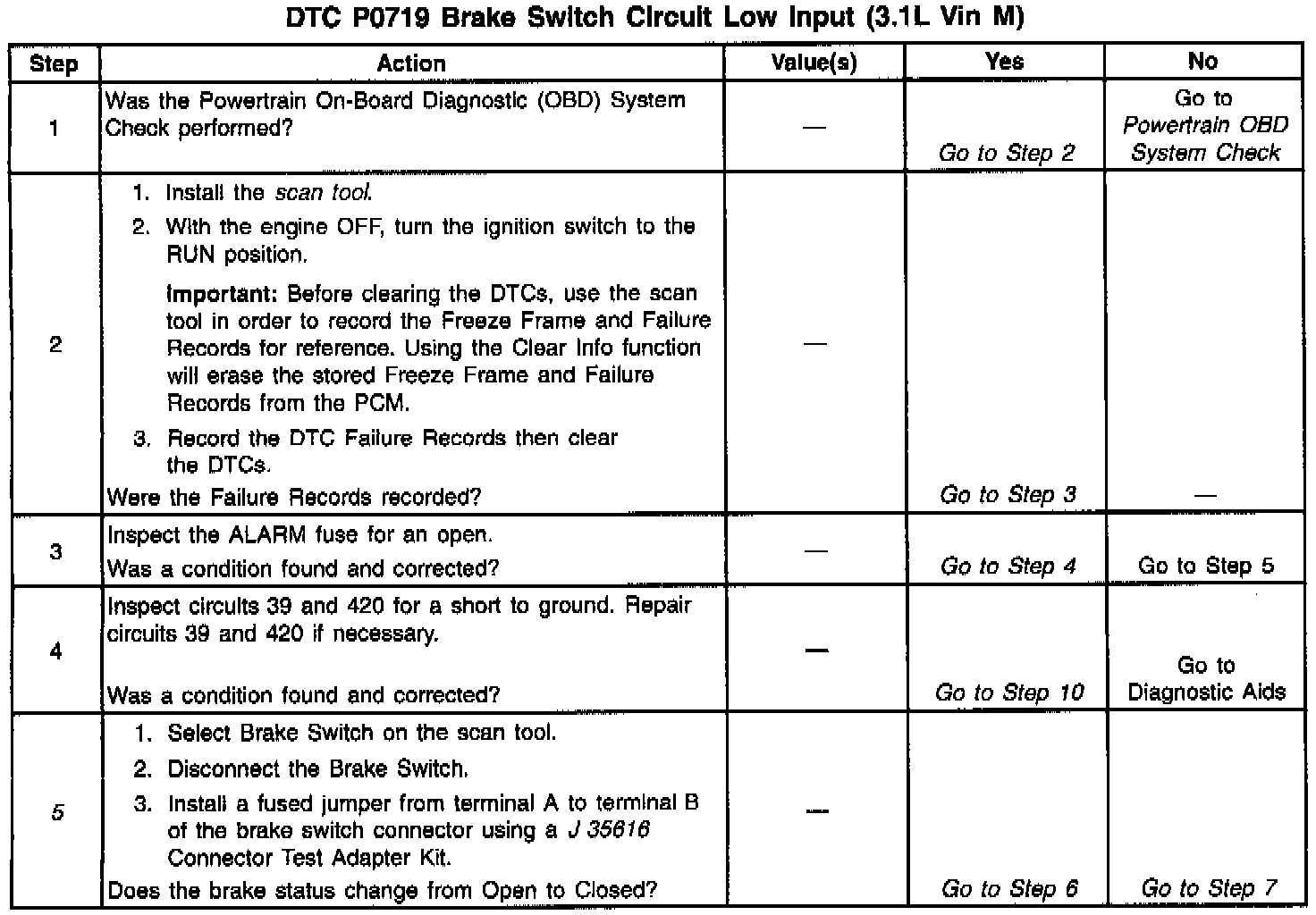

Diagnostic Chart:

Wiring Diagram:

Circuit Description

The brake switch reports brake pedal status to the Powertrain Control Module (PCM). The brake switch indicates that the brake pedal is either applied or released. The normally-closed switch supplies battery voltage on circuit 420 to the PCM. Applying the brake pedal opens the brake switch, interrupting voltage to the PCM. If the PCM receives a zero voltage signal at the brake switch input, and the Torque Converter Clutch (TCC) is engaged, the PCM de-energizes the Torque Converter Clutch Solenoid Valve (TCC Sol. Valve). The PCM disregards the brake switch input for TCC scheduling if there is a brake switch circuit fault (Refer to Diagnostic Aids).

When the PCM detects an open brake switch (pedal applied) during a number of accelerations, over a continuous period of time, then DTC P0719 sets. DTC P0719 is a type D DTC.

Conditions for Setting the DTC

^ No Vehicle Speed Sensor (VSS) DTCs P0502 or P0503.

^ The vehicle speed is less than 8 km/h (5 mph).

^ Accelerate the vehicle to 32 km/h (20 mph) taking 4 seconds or more.

^ The vehicle speed remains above 32 km/h (20 mph) for 6 seconds or more.

^ The above conditions must occur more than 7 times with the brake switch signal indicating open for more than 15 minutes, without being closed for 2 seconds.

Action Taken When the DTC Sets

^ The PCM does not illuminate the Malfunction Indicator Lamp (MIL).

^ Disregard the brake switch for TCC scheduling when all of the following conditions are met:

- The throttle position is greater than 6%.

- The vehicle speed is greater than 70 km/h (44 mph).

- The throttle position was previously greater than 12%, while the vehicle speed was greater than 72 km/h (47 mph).

- The brake switch has not been closed for more than 2 seconds during this ignition cycle.

Conditions for Clearing the DTC

^ A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history it the vehicle completes 40 warm-up cycles without a failure reported.

^ The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.

Diagnostic Aids

^ If the PCM detects a brake switch fault, then the brake switch input is disregarded for TCC scheduling. The PCM then uses throttle position and vehicle speed input to determine TCC application and release. Use of these inputs may result in a noticeable harsh apply or abrupt release of the TCC.

^ Ensure that the brake switch is properly adjusted.

^ Inspect the wiring at the PCM, the brake switch connector and all other circuit connecting points for the following conditions:

- A bent terminal.

- A backed out terminal.

- A damaged terminal.

- Poor terminal tension.

- A chafed wire.

- A broken wire inside the insulation.

- Moisture intrusion.

- Corrosion.

^ When diagnosing for an intermittent short or open condition, massage the wiring harness while watching the test equipment for a change.

Test Description

The numbers below refer to the step numbers on the diagnostic table.

5. This step isolates the fault between the brake switch and the harness.
