Wiper Motor Linkage: Service and Repair

Wiper Motor And Transmission Assemblies:

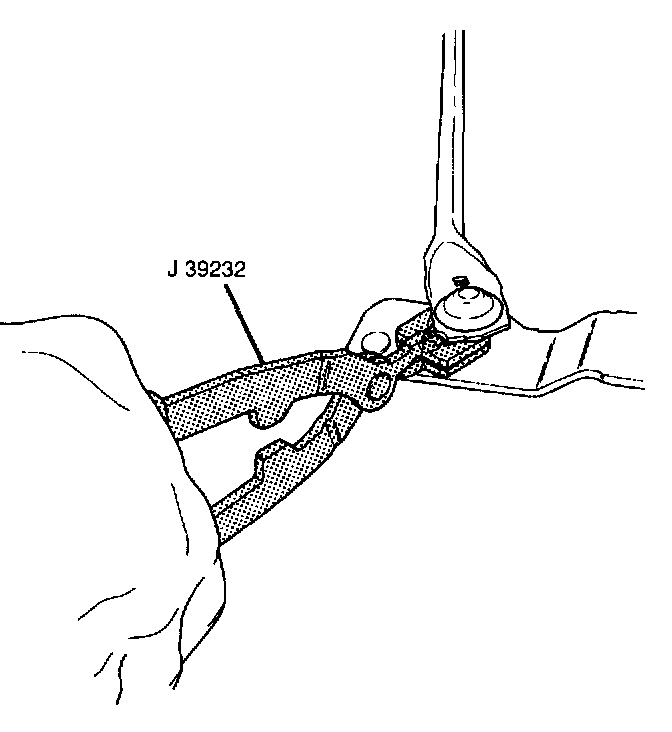

J 39232 Wiper Transmission Separator: Typical Usage:

J 39232 Wiper Transmission Installer: Typical Usage:

REMOVE OR DISCONNECT

TOOL REQUIRED:
J 39232 Wiper Transmission Separator

1. Wiper arm and blade assemblies. See "Wiper Arm Assembly Replacement." Service and Repair
2. Top vent grille panel.
3. Transmission drive link socket from wiper motor crank arm ball (Figure 17) using J 39232 (Figure 18).
4. Six screws (20, Figure 17).
5. Transmission assembly (16) by guiding it through access hole in shroud upper panel.

INSTALL OR CONNECT

TOOL REQUIRED:
J 39529 Wiper Transmission Installer

NOTICE: Refer to Fastener Notice in General Information.

1. Transmission assembly (16) by positioning assembly in plenum chamber through the shroud upper panel openings.
2. Six screws (20).

Tighten
- Screws (20) to 8 N.m (71 lb. in.).

3. Transmission drive link socket to wiper motor crank arm ball using J 39529 (Figure 19).
4. Top vent grille panel.
5. Wiper arm and blade assemblies. See "Wiper Arm Assembly Replacement."
