EGR Electronic Vacuum Regulator Solenoid
EGR Electronic Vacuum Regulator Solenoid

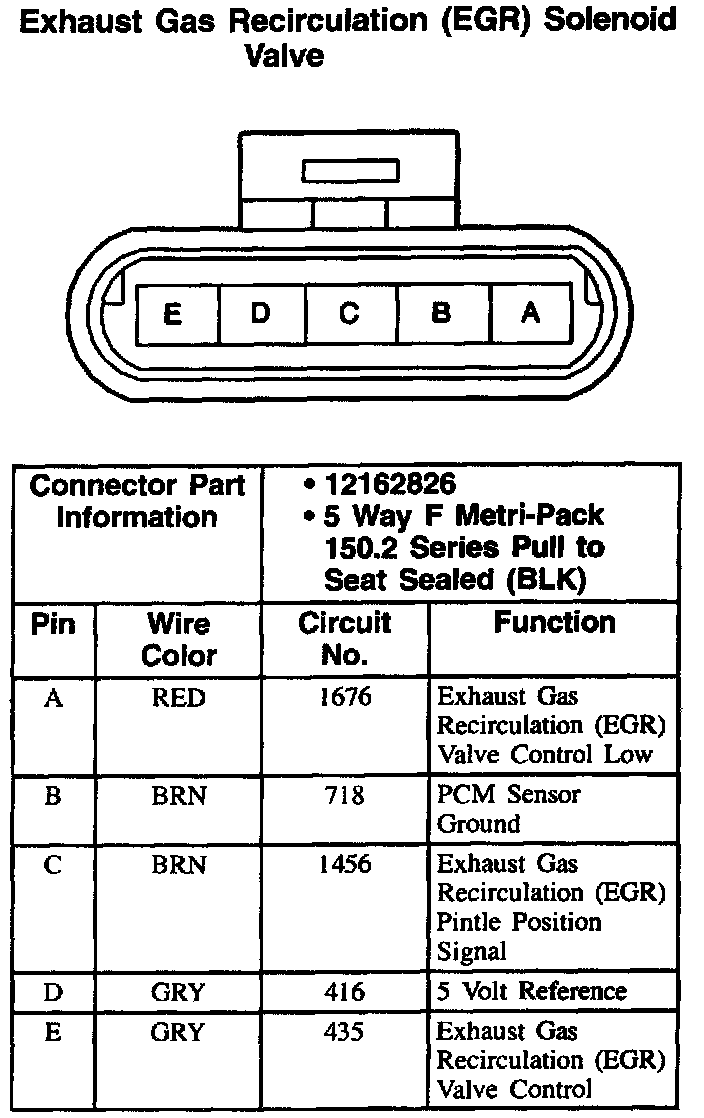

Exhaust Gas Recirculation (EGR) Solenoid Valve:
