Pontiac
>>
1998
>>
Grand Prix V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Heads Up Display Unit
Heads Up Display Unit

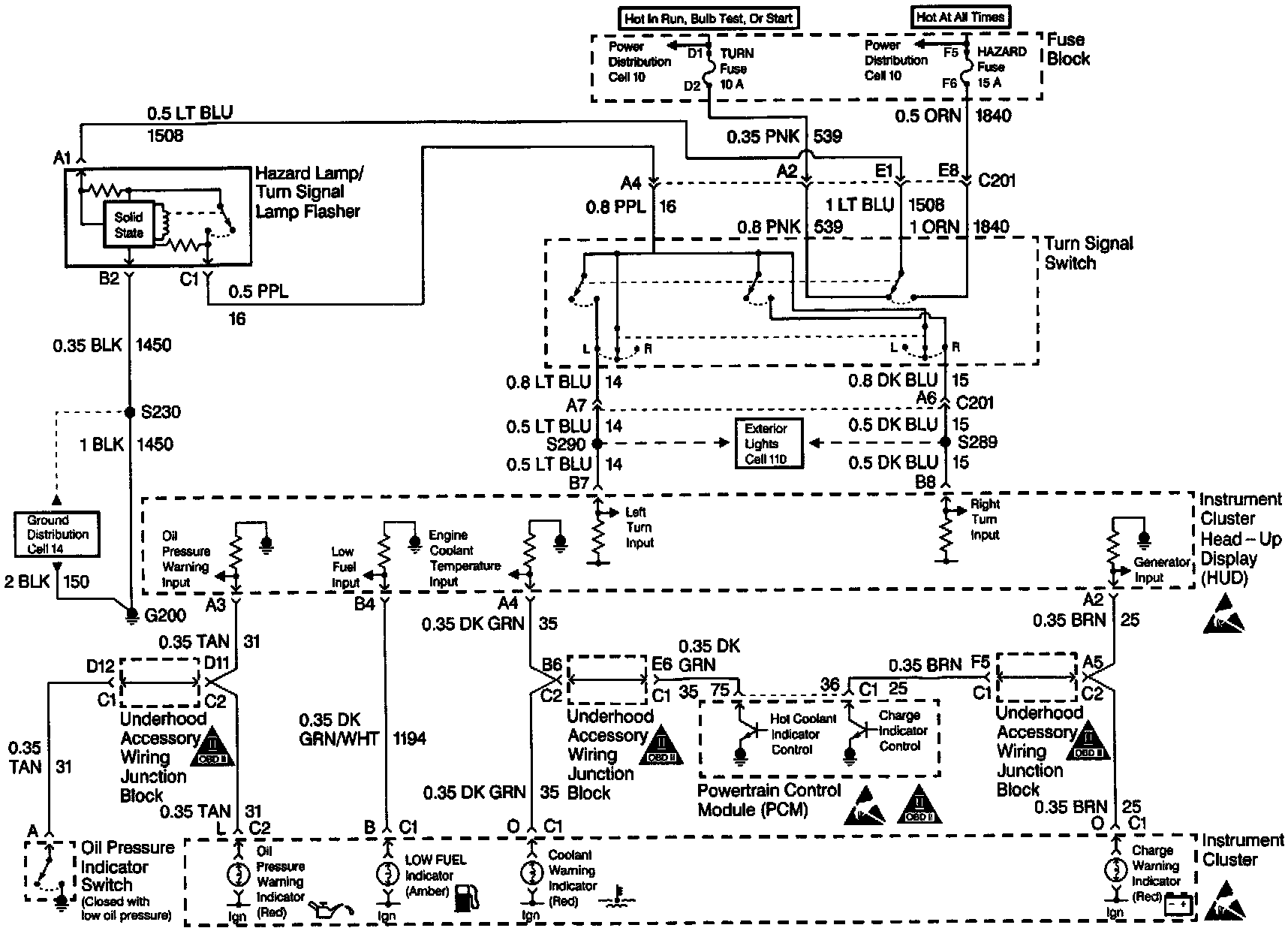

Head-Up Display (HUD) (Part 1 Of 2):
Head-Up Display (HUD) (Part 2 Of 2):
