Park Brake Actuator Replacement

REMOVAL PROCEDURE





1. Raise and suitably support the vehicle.
2. Remove the tire and wheel.

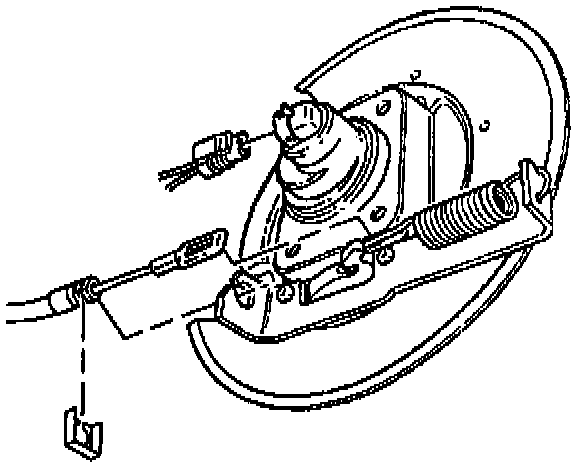

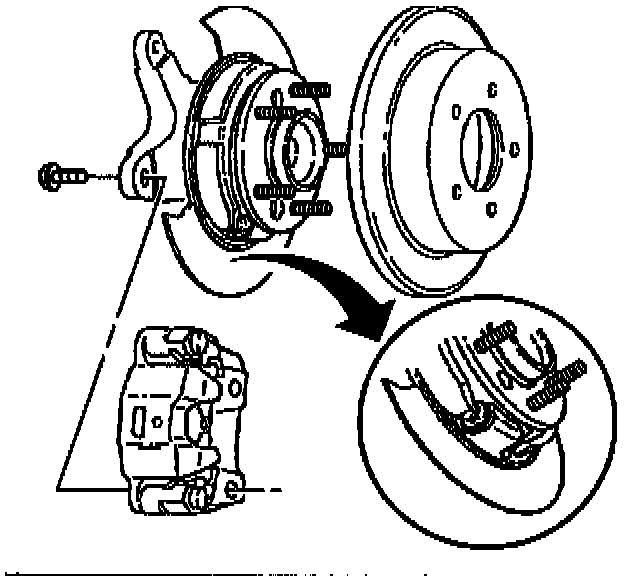

3. Install the brake rotor.

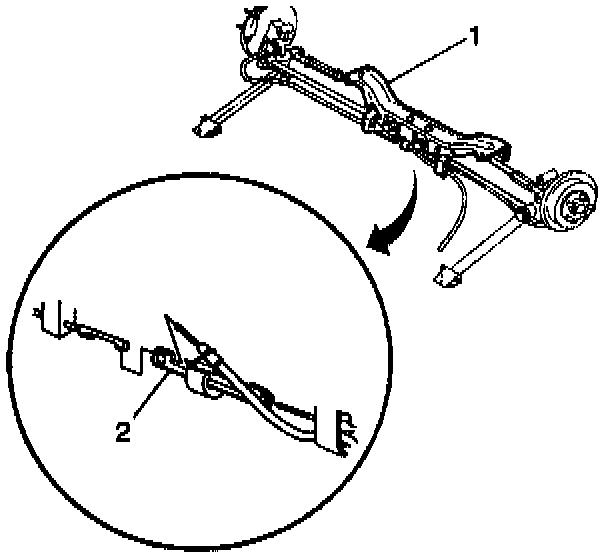

4. Loosen the brake cables at the equalizer (2).





5. Remove the cable from the actuator lever.
6. Remove the parking brake return spring.

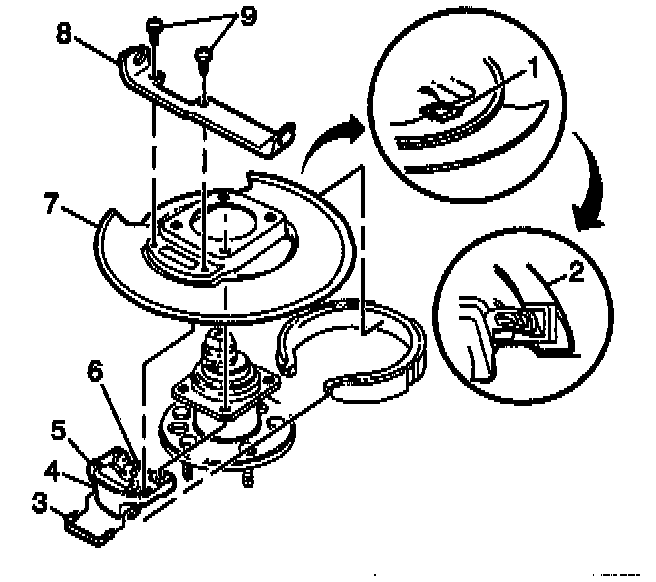

7. Remove the cable from the parking brake bracket (8).
8. Remove the parking brake bracket (8) from the support plate (7).
9. Remove the parking brake actuator (5).

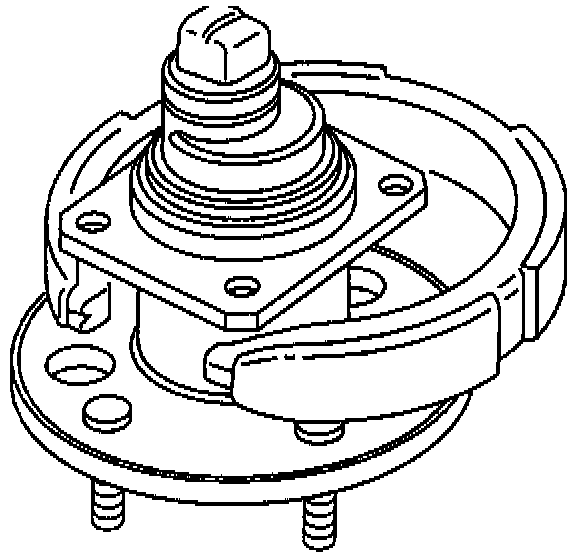

10. Remove the rear wheel hub.
11. Remove the parking brake shoe and lining.

INSTALLATION PROCEDURE





1. Install the parking brake shoe and lining.
2. Install the rear wheel hub.

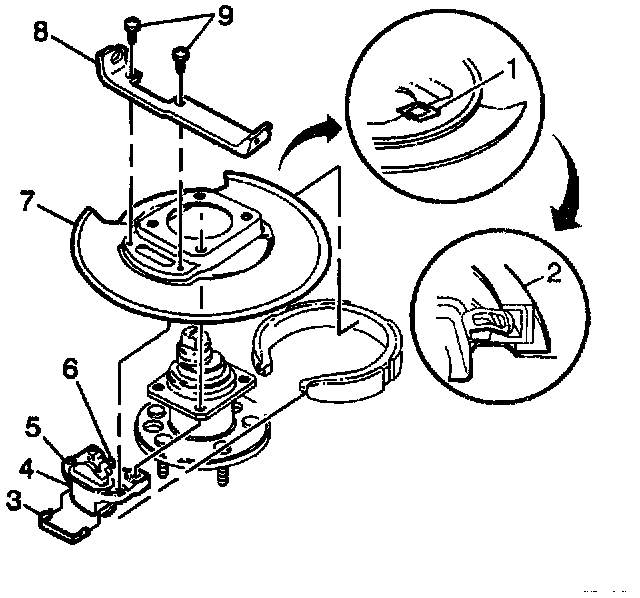

3. Install the parking brake actuator (5).

NOTICE: Refer to Fastener Notice in Cautions and Notices.

4. Install the parking brake bracket (3) onto the support plate (7) bolts.
^ Tighten the support plate bolts to 10 Nm (89 in. lbs.).

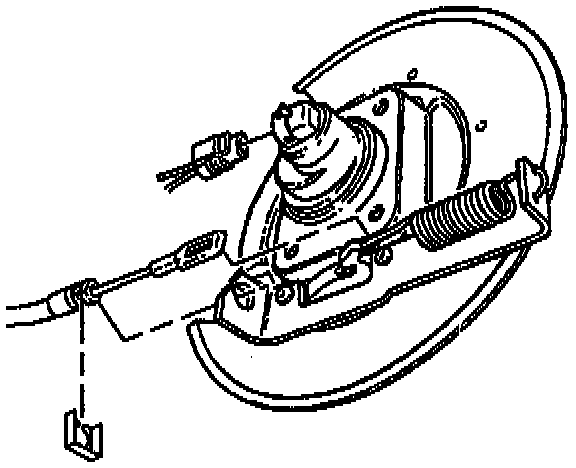

5. Install the parking brake return spring.
6. Install the cable onto the parking brake bracket.
7. Install the cable onto the actuator lever.

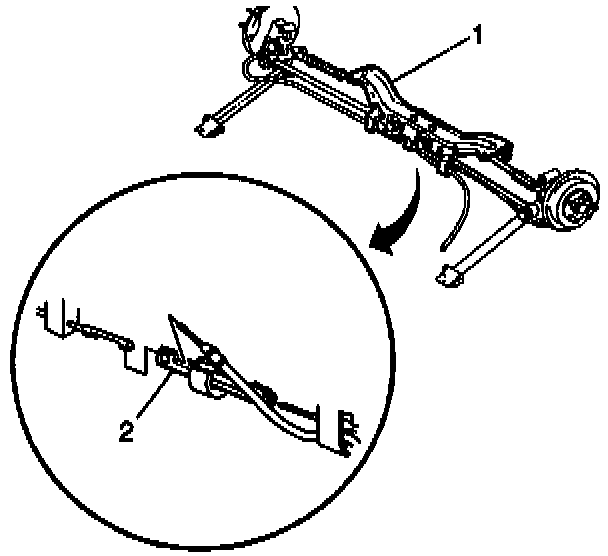

8. Tighten nut on the equalizer in order to remove the slack in the cable.





9. Install the brake rotor.
10. Install the tire and wheel.
11. Lower the vehicle.
12. Adjust the parking brake.
